Built In Thermal Printer 2μM Liquid Particle Counter LS100-2

Basic Information
Place of Origin: China
Brand Name: SUJING
Model Number: LS100-2
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Name: LS100-2 0.2-2μm Liquid Particle Counter Liquid Samplers Particle Size Range: 0.2-2μm
Particle Size Channel: 16 Display: 7inch LCD Color Touch Screen
Maximum Detection Concentration: 10000 Particles/ml Warranty Time: 1 Year
High Light:

PTFE sensor liquid particle counter


Liquid Particle Counter LS100-2


2μM Liquid Particle Counter

Product Description

LS100-2 0.2-2μm Liquid Particle Counter Liquid Samplers

Liquid Samplers have an integrated syringe sampler and optical particle counting system. Its easy-to-use Windows based software interface is designed to meet the international regulatory EP and JP, as well as USP 788 requirements. Following a quality standard of reliability and dependability, Lighthouse Worldwide Solutions developed the Liquid Sampler using the latest in laser optical particle counter technology. The LPC uses a high accuracy syringe pump flow control system and a high sample volume sensor. With sample volumes adjustable from 1 to 1000 milliliters (10 mL syringe), it is a perfect tool for multiple batch sampling applications.


Technical parameters liquid particle counter
Particle size range 0.2-2μm
Particle size channel 16
Maximum detection concentration 10000 particles/ml
Accuracy ±10%
Sampling speed 20 ml/min*
Sample volume accuracy ±1%
Sensor material 316 stainless steel, quartz glass, PTFE, NBR
Power supply AC 100~240V, 50/60HZ
Data output RS232 port; USB; built-in thermal printer
Display output 7 inch LCD color touch screen
Size 320(L)×309(W)×394(H) mm
Weight 11.0 kg
Operating environment Temperature 10-40 ℃; RH 0 ~ 95% non-condensing

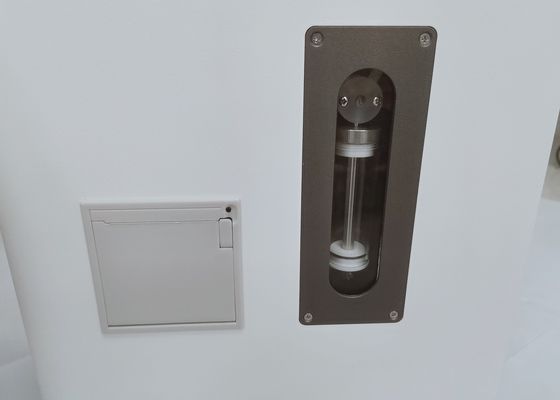

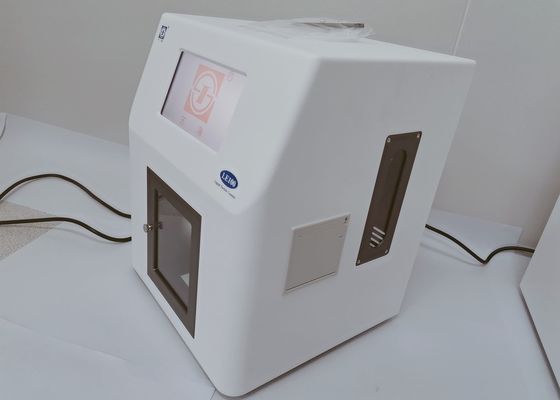

Built In Thermal Printer 2μM Liquid Particle Counter LS100-2 0 Built In Thermal Printer 2μM Liquid Particle Counter LS100-2 1
 Overview descriptions of liquid particle counter
8.Exhaust fan 1. Display
9.heat emission hole 2. Door of sample chamber
10. Power switch 3. Thermal printer
11. AC power outlet and fuse 4. Syringe
12. R232 port 5. Sample tube
13. Sample drain 6. LED chamber light
14. USB port 7. Stirrer


Components of liquid particle counter


The instrument ×1 Power cord ×1
Fuse ×1 Detecting cup ×1
Stir rod ×1 Operation manual ×1
Drain line tube ×1 Testing report ×1
Touch pen ×1 Quality certificate ×1
Printing paper ×1 Warranty card ×1
Packing list ×1
