Stainless Enclosure Remote 3104 Online Particle Counter ISO14644

Basic Information
Place of Origin: JIANGSU
Brand Name: SUJING
Model Number: Remote
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Name: 28.3lpm (1.0cfm) Built-In Pump Online Dust Particle Counter Detect Class: ISO Class 5-9 (EU GMP Grade A-D)
Standard: GMP, ISO14644, FDA, JJF1190-2008 Two Size Channels: 0.5 & 5.0 Micron Sensitivity
Flow Rate: 2.83L/min, Or 28.3L/min Warranty Time: 1 Year
High Light:

Remote 3104 Online Particle Counter


ISO14644 Online Particle Counter


2.83L/min Online Particle Counter

Product Description

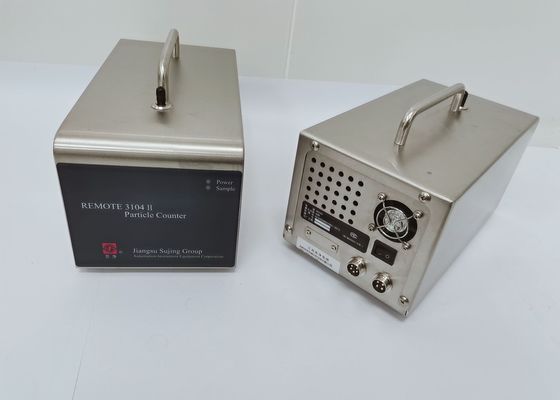

Remote 3104 Online Particle Counter With Stainless Enclosure


All model Remote Particle Counters with Pump are designed for heavy industrial electrical immunity compliance and onboard data storage of 30,000 sample records. Data is quickly and easily shared with multiple platforms,


Feature of online particle counter

1. Compact laser particle sensor with stainless enclosure

2. Two size channels 0.5 & 5.0 micron sensitivity

3. Flow Rate: 2.83L/min, or 28.3L/min

4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)

5. Multi-function, user-friendly monitoring software

6. One PC system controls up to 128 sensors


Benefit of online particle counter

  • Secure, long-term collection and storage of critical manufacturing data
  • Reduce installation costs and complexity—wireless enabled with minimal infrastructure and built-in pump
  • Simplifies integration with Ethernet or DC power
  • Reliable operation with heavy industrial electrical immunity compliance
  • Early-warning of adverse environmental trends with per second sampling
  • Predictive instrument maintenance alerts
  • ISO 14644-14 suitability for use classified

 sensor auto discovery
Sample inlet capping auto-detect automatically stops built in pump and prevents accidental damage
Easy Integration into third party systems with 4-20 mA analog data output model options


28.3LPM (1.0CFM) built-in pump


Stainless Enclosure Remote 3104 Online Particle Counter ISO14644 0


Outside Dim 275*450*175 mm³(Wide*Deep*High)
Weight 4kg
Max. Consumption 40W
Power Source DC24V
Size Channels 0.5, 5μm
Flow Rate 28.3L/min
Environmental Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa
Cycles Selectable(1s-24h)
Zero Court <=10min
Data Output RS485(modbus) or 4-20mA



Stainless Enclosure Remote 3104 Online Particle Counter ISO14644 1
