DC24V Online Remote Laser Air Particle Counters With Integrated Pump
|
DC24V Online Remote Laser Air Particle Counters With Integrated Pump
| Brand Name: | SUJING |
| Model Number: | Remote |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
2.83L/min laser air particle counter
,5um laser air particle counter
,DC24V laser air particle counter
Online Remote Laser Air Particle Counters With Integrated Pump
Online Remote Particle Counters with Integrated Pump are independent monitoring systems condensed into an easy-to-clean 316L stainless steel enclosure. The integrated clean pump eliminates the need for an external vacuum source. Four standard analog inputs help to reduce installation and integration costs.
Feature of online particle counter
1. Compact laser particle sensor with stainless enclosure
2. Two size channels 0.5 & 5.0 micron sensitivity
3. Flow Rate: 2.83L/min, or 28.3L/min
4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)
5. Multi-function, user-friendly monitoring software
6. One PC system controls up to 128 sensors
Benefit of online particle counter
- Secure, long-term collection and storage of critical manufacturing data
- Reduce installation costs and complexity—wireless enabled with minimal infrastructure and built-in pump
- Simplifies integration with Ethernet or DC power
- Reliable operation with heavy industrial electrical immunity compliance
- Early-warning of adverse environmental trends with per second sampling
- Predictive instrument maintenance alerts
- ISO 14644-14 suitability for use classified

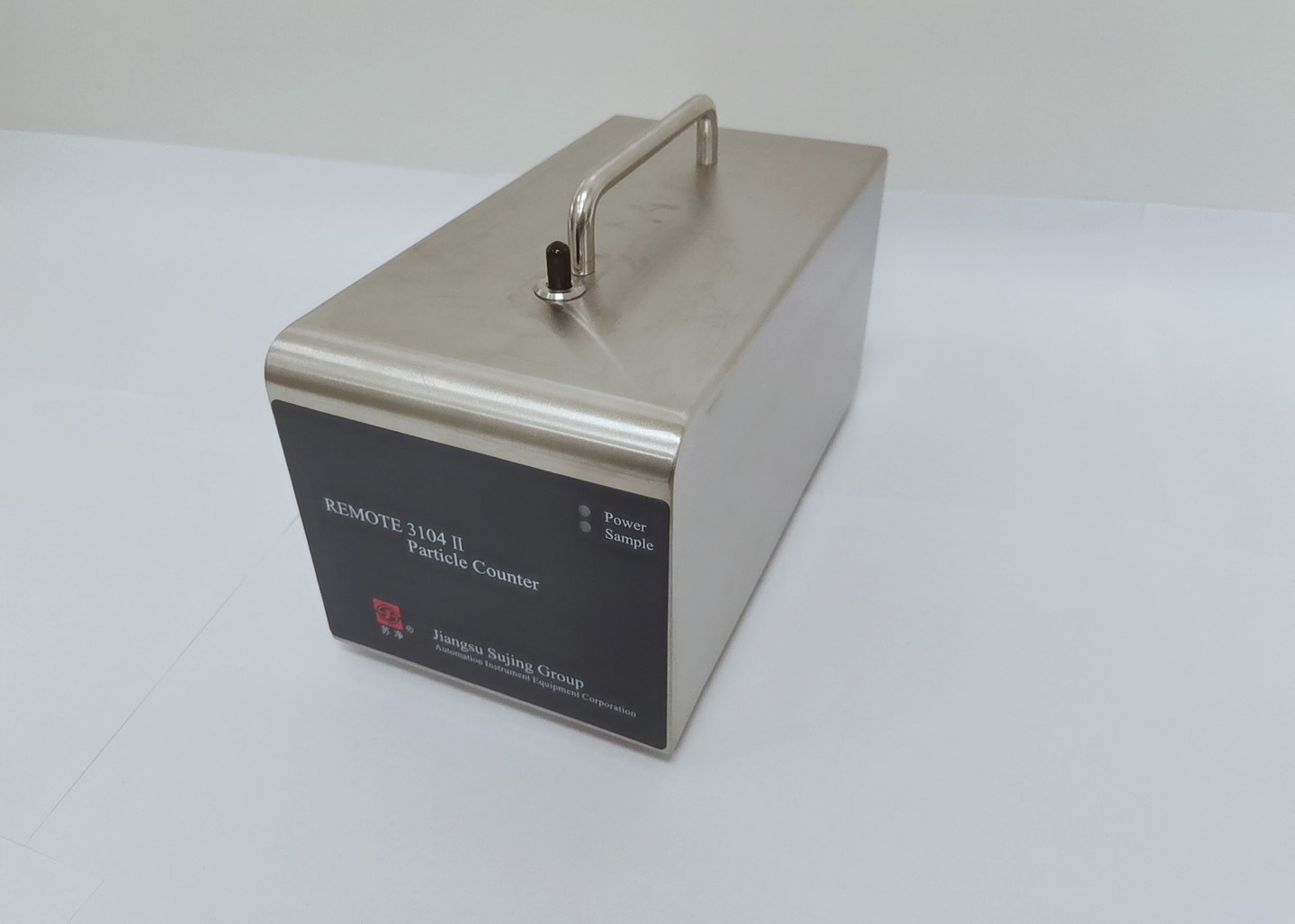

REMOTE 3104
28.3LPM (1.0CFM) built-in pump
| Outside Dim | 275*450*175 mm³(Wide*Deep*High) |
| Weight | 4kg |
| Max. Consumption | 40W |
| Power Source | DC24V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 28.3L/min |
| Environmental | Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa |
| Cycles | Selectable(1s-24h) |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |
