40W 2.83L/Min Flow Online Particle Counter For Cleanroom

Basic Information
Place of Origin: JIANGSU
Brand Name: SUJING
Model Number: Remote
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Name: Online Remote Laser Air Particle Counters With Integrated Pump Standard: ISO 14644-14
Two Size Channels: 0.5 & 5.0 Micron Sensitivity Flow Rate: 2.83L/min, Or 28.3L/min
Weight: 4kg Outside Dim: 275*450*175 Mm³(Wide*Deep*High)
High Light:

2.83L/min Flow Online Particle Counter

,

Cleanroom Online Particle Counter

,

40W Online Particle Counter


Product Description

Online Remote Laser Air Particle Counters For Cleanroom​



Remote particle counter is used to install one or more monitoring points according to the actual situation on site, and the measured datas will be directly displayed on the display screen of each monitoring point.



Remote Particle Counter meets the requirements of GMP and ISO21501-4. If an abnormality occurs during real-time monitoring, the monitoring points can be quickly notified, which makes remote monitoring or monitoring in the process restricted area more convenient. In addition, the Remote Particle Counter contains multiple models, customers can choose the models according to their actual needs.



Monitoring system.jpg



Feature of online particle counter

1. Compact laser particle sensor with stainless enclosure

2. Two size channels 0.5 & 5.0 micron sensitivity

3. Flow Rate: 2.83L/min, or 28.3L/min

4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)

5. Multi-function, user-friendly monitoring software

6. One PC system controls up to 128 sensors



Benefit of online particle counter

  • Secure, long-term collection and storage of critical manufacturing data
  • Reduce installation costs and complexity—wireless enabled with minimal infrastructure and built-in pump
  • Simplifies integration with Ethernet or DC power
  • Reliable operation with heavy industrial electrical immunity compliance
  • Early-warning of adverse environmental trends with per second sampling
  • Predictive instrument maintenance alerts
  • ISO 14644-14 suitability for use classified

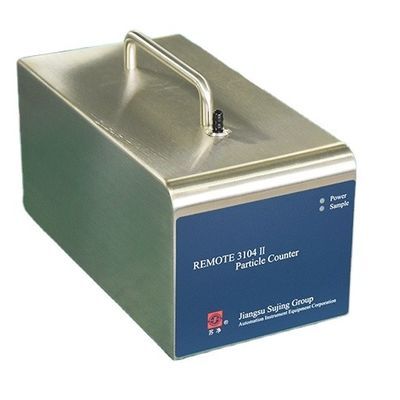

REMOTE 3104

28.3LPM (1.0CFM) built-in pump



40W 2.83L/Min Flow Online Particle Counter For Cleanroom 1



Outside Dim 275*450*175 mm³(Wide*Deep*High)
Weight 4kg
Max. Consumption 40W
Power Source DC24V
Size Channels 0.5, 5μm
Flow Rate 28.3L/min
Environmental Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa
Cycles Selectable(1s-24h)
Zero Court <=10min
Data Output RS485(modbus) or 4-20mA





40W 2.83L/Min Flow Online Particle Counter For Cleanroom 2
