Name: | Y09-PM Air Pollution Quality Monitor PM2.5 PM10 Dust Detector | Model: | Y09-PM10 |
---|---|---|---|
Flow Rate: | 0.1cfm | Detection Range: | 0.1-999.9μg /m3 |
Sensor: | Laser Snesor | Warranty Time: | 1 Year |
Highlight: | DC8.4V Air Pollution Quality Monitor,PM2.5 Air Pollution Quality Monitor,PM10 Air Pollution Quality Monitor |

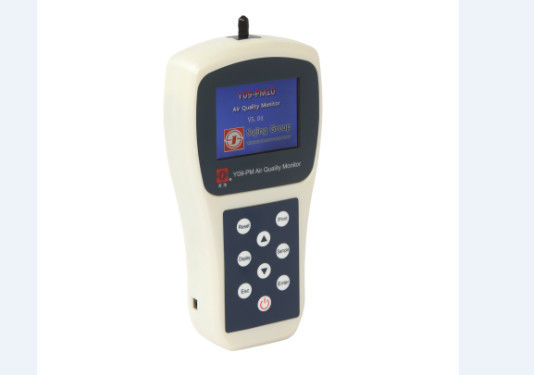

Y09-PM Air Pollution Quality Monitor PM2.5 PM10 Dust Detector
The Y09-PM air pollution quality monitor is used to monitor particles PM2.5 PM 10 for outdoor .Fine particulate matter, also known as fine particles, fine particles PM2.5. It refers to fine particulate matter in ambient air aerodynamic equivalent diameter less than or equal to 2.5 micron particles. It was suspended for a long time in the air, the higher its content concentration in the air, on behalf of the more serious air pollution. While the Earth's atmospheric composition PM2.5 only a few components in the content, but the air quality and visibility has important impact. Compared with coarse atmospheric particulate matter, PM2.5 particle size is small, a large area, active, easy incidental toxic and hazardous substances (such as heavy metals, microorganisms etc.), and long residence time in the atmosphere, transmission distance, thus a greater impact on human health and environmental quality of the atmosphere.
The parameter of Y09-PM10 Air Quality Monitor
Model | Y09-PM (Handheld) |
Outside Dim | 130*220*45(Wide*High*Deep) |
Display | LCD |
Weight | 0.6kg |
Maximum consumption | 10W |
Power Source | DC8.4 V built-in Lithium Battery |
Size channels | PM1.0 PM2.5 PM10 |
Flow Rate | 2.83L/min (Imported Pump) |
Sample Time | 0-999999s Selectable |
Zero Count | <=10min |
Location Labels | 0-999 |
Printer | External thermal printer(optional) |
Detection Range | 0.1-999.9μg /m3 |
Data Storage | 1000 records |
Light Source | Laser Diode (30000 hours mean time between failures) |
Operating Time | 5 hours |
Environmental | Temperature:10-40℃;Humidity:<85%RH;Atmosphere Pressure:86-106Kpa |

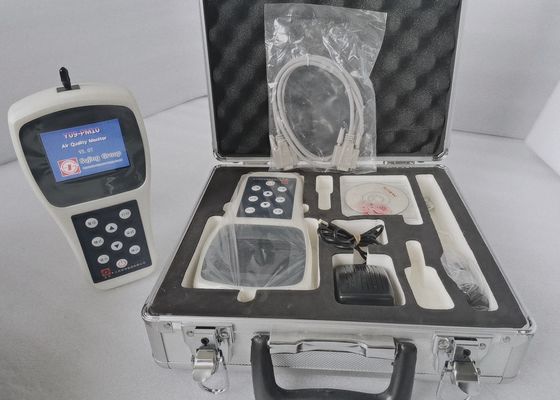

Accessories | Carry case ;zero count filter; AC adapter; pc cable; pc software |
Suzhou Sujing Automation Instrument Equipment Co., Ltd. (herein after referred to as Sujing Instrument) is boasting the largest market share in the particle measurement field in China, with complete integration of scientific research, development and production.
Sujing Instrument is one subsidiary company of Sujing Group.(Sujing Group has 11 subsidiary companies)
Sujing brand has been granted the honor of "China Famous Brand" since 1983. Sujing Group has been keeping the first place among competitors in the same industry for 35 years in a row.
The mission of Sujing Instrument is to provide products and services accociated with particle measurement and monitoring, which are application driven.
Sujing instrument is an ISO 9001:2015 Registered Company
