| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | Y09-PM |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Y09-PM Air Pollution Quality Monitor Portable Particulate Matter | Model: | Y09-PM10 |
|---|---|---|---|
| Flow Rate: | 0.1cfm | Detection Range: | 0.1-999.9μg /m3 |
| Sensor: | Laser Snesor | Warranty Time: | 1 Year |
| High Light: | PM2.5 Portable Air Quality Monitor,0.1cfm Portable Air Quality Monitor,PM1.0 Air Pollution Quality Monitor |
||

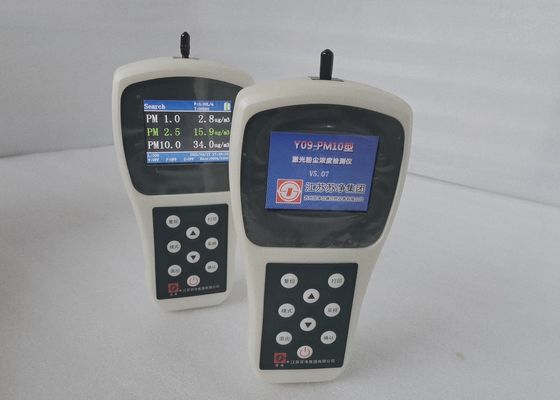

Y09-PM Air Pollution Quality Monitor Portable Particulate Matter
This handheld dust quick detector is the special detecting instrument used to measure the value of PM2.5 (repairable particles) and PM10 (inhalable particle) in the air. It is a high-tech product developed independently and integrating gas dynamics, digital signal processing and optical-mechanical-electrical integration on the basis of absorbing oversea advanced high sensitivity micro laser sensor technology. The device is characterized by high test precision, stable performance, strong multiple functions and easy and convenient operation and can be used widely for determination of indoor and outdoor public environment and atmospheric environment, PM2.5 air quality detection and PM2.5 dust particle amount.
The parameter of Y09-PM10 Air Quality Monitor
| Model | Y09-PM (Handheld) |
| Outside Dim | 130*220*45(Wide*High*Deep) |
| Display | LCD |
| Weight | 0.6kg |
| Maximum consumption | 10W |
| Power Source | DC8.4 V built-in Lithium Battery |
| Size channels | PM1.0 PM2.5 PM10 |
| Flow Rate | 2.83L/min (Imported Pump) |
| Sample Time | 0-999999s Selectable |
| Zero Count | <=10min |
| Location Labels | 0-999 |
| Printer | External thermal printer(optional) |
| Detection Range | 0.1-999.9μg /m3 |
| Data Storage | 1000 records |
| Light Source | Laser Diode (30000 hours mean time between failures) |
| Operating Time | 5 hours |
| Environmental | Temperature:10-40℃;Humidity:<85%RH;Atmosphere Pressure:86-106Kpa |
| Accessories | Carry case ;zero count filter; AC adapter; pc cable; pc software |
Suzhou Sujing Automation Instrument Equipment Co., Ltd. (herein after referred to as Sujing Instrument) is boasting the largest market share in the particle measurement field in China, with complete integration of scientific research, development and production.
Sujing Instrument is one subsidiary company of Sujing Group.(Sujing Group has 11 subsidiary companies)
Sujing brand has been granted the honor of "China Famous Brand" since 1983. Sujing Group has been keeping the first place among competitors in the same industry for 35 years in a row.
The mission of Sujing Instrument is to provide products and services accociated with particle measurement and monitoring, which are application driven.
Sujing instrument is an ISO 9001:2015 Registered Company
