0.1cfm Online Particle Counter For Cleanroom 24 Hours Monitoring
|
0.1cfm Online Particle Counter For Cleanroom 24 Hours Monitoring
| Brand Name: | SUJING |
| Model Number: | Remote |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
24 Hours Monitoring Online Particle Counter
,0.1cfm Online Particle Counter
,Cleanroom Online Particle Counter
0.1cfm Online Particle Counter For Cleanroom 24 Hours Monitoring
The online monitoring system of suspended particles is used to record the status of suspended particles in the air of key areas of the production line. It can automatically and continuously monitor and record the size and quantity distribution of suspended particles in the monitored ambient air, and generate reports at the same time. When the state of the dust particles in the monitoring environment exceeds the warning line and deviation correction line, the system can automatically trigger the sound and light alarm and inform the relevant personnel to deal with it, so as to help ensure that the state of the particles in the key monitored environment is in a normal state and ensure the smooth progress of production.
Feature of online particle counter
1. Compact laser particle sensor with stainless enclosure
2. Two size channels 0.5 & 5.0 micron sensitivity
3. Flow Rate: 2.83L/min, or 28.3L/min
4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)
5. Multi-function, user-friendly monitoring software
6. One PC system controls up to 128 sensors
Benefit of online particle counter
- Secure, long-term collection and storage of critical manufacturing data
- Reduce installation costs and complexity—wireless enabled with minimal infrastructure and built-in pump
- Simplifies integration with Ethernet or DC power
- Reliable operation with heavy industrial electrical immunity compliance
- Early-warning of adverse environmental trends with per second sampling
- Predictive instrument maintenance alerts
- ISO 14644-14 suitability for use classified

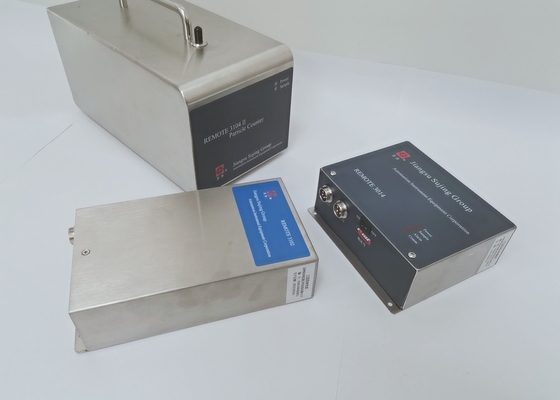

REMOTE 3104
28.3LPM (1.0CFM) built-in pump
| Outside Dim | 275*450*175 mm³(Wide*Deep*High) |
| Weight | 4kg |
| Max. Consumption | 40W |
| Power Source | DC24V |
| Size Channels | 0.5, 5μm |
| Flow Rate | 28.3L/min |
| Environmental | Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa |
| Cycles | Selectable(1s-24h) |
| Zero Court | <=10min |
| Data Output | RS485(modbus) or 4-20mA |
