Product Details:
Place of Origin: JIANGSU
Brand Name: SUJING
Model Number: Remote
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detailed Product Description
Name: Particle Counter Continuous Particle Contamination Monitoring Detect Class: ISO Class 5-9 (EU GMP Grade A-D)
Standard: GMP, ISO14644, FDA, JJF1190-2008 Two Size Channels: 0.5 & 5.0 Micron Sensitivity
Flow Rate: 2.83L/min, Or 28.3L/min Warranty Time: 1 Year
High Light:

28.3LPM Continuous Particle Monitoring System

,

Continuous Particle Counter DC24V

,

Contamination Monitoring Continuous Particle Counter

Contamination Monitoring Continuous Particle Counter 28.3LPM DC24V

Particle Counter Continuous Particle Contamination Monitoring



The online monitoring system of suspended particles is used to record the status of suspended particles in the air of key areas of the production line. It can automatically and continuously monitor and record the size and quantity distribution of suspended particles in the monitored ambient air, and generate reports at the same time. When the state of the dust particles in the monitoring environment exceeds the warning line and deviation correction line, the system can automatically trigger the sound and light alarm and inform the relevant personnel to deal with it, so as to help ensure that the state of the particles in the key monitored environment is in a normal state and ensure the smooth progress of production.



Feature of online particle counter

1. Compact laser particle sensor with stainless enclosure

2. Two size channels 0.5 & 5.0 micron sensitivity

3. Flow Rate:   28.3L/min

4. Measures multi-parameters, particle, air velocity, temperature, humidity, differential pressure (optional)

5. Multi-function, user-friendly monitoring software

6. One PC system controls up to 128 sensors

7. Complies with all requirements of ISO 21501-4

8.1 Year warranty time



Application of online particle counter

  • Filter Testing
  • Continuous Particle Contamination Monitoring

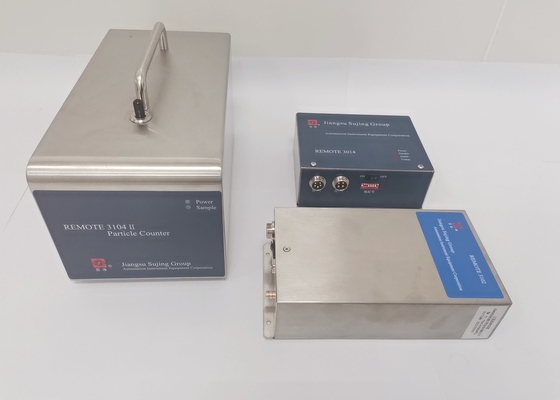

REMOTE 3104

28.3LPM (1.0CFM) built-in pump



Contamination Monitoring Continuous Particle Counter 28.3LPM DC24V 0



Outside Dim 275*450*175 mm³(Wide*Deep*High)
Weight 4kg
Max. Consumption 40W
Power Source DC24V
Size Channels 0.5, 5μm
Flow Rate 28.3L/min
Environmental Temperature:10℃-40℃; Humidity:20%-90%RH; Atmosphere Pressure:86-106Kpa
Cycles Selectable(1s-24h)
Zero Court <=10min
Data Output RS485(modbus) or 4-20mA





Contamination Monitoring Continuous Particle Counter 28.3LPM DC24V 1
