Y09-3016 Handheld Airborne Dust Particle Counter In Pharma Factory

Certification
China Suzhou Sujing Automation Equipment corporation limited certification
China Suzhou Sujing Automation Equipment corporation limited certification
I'm Online Chat Now

Y09-3016 Handheld Airborne Dust Particle Counter In Pharma Factory

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Y09-3016 Handheld Airborne Dust Particle Counter In Pharma Factory

Product Details:
Place of Origin: China
Brand Name: SUJING
Model Number: Y09-3016
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detailed Product Description
Name: Y09-3016 0.1cfm Handheld Air Dust Particle Counter In Cleanroom Size Channel: 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate: 0.1CFM Alarm: ISO14644-1:2015/GMP:2015
Warranty Time: 1 Year Environmental: 10degrees Celsius-30degrees Celsius ; Humidity: 20%-75% RH ;Atmosphere Pressure 86Kpa-106Kpa

Y09-3016 Handheld Airborne Dust Particle Counter In Pharma Factory



The Y09-3016 handheld particle counter features 6 channels to detect the number of 0.3, 0.5, 1, 3, 5, 10 μm particle size dust, the concentration of PM2.5 ,PM10.And it can detect the class of class 100 clean room and below clean room ,temperature,humidity and AQI Grade





The parameter of air particle counter

Model Y09-3016
Outside Dim 300*360*126 mm3(Wide*Deep*High)
Display LCD
Weight 0.7kg
Battery (Lithium Ion Battery),7.2V,2200mAh
Power Source Li-ion charger ,8.4V DC,1A:9-250V AC, 50-60Hz
Size Channels 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate 2.83L/min
Sample Time 1s-99h
Cycles 0-99
Hold Time 0-999sec
Delay Time 0-99sec
Light source Laser Diode
Zero Court <=10min
Alarm ISO14644-1:2015/GMP:2015
Coincidence Loss 5%,2000000ps/cf
Operating Time more than 5.5 hours
output RS-232 to pc or printer via optional cable
Location Labels 0-999
Data Storage 1000 Samples (With PC Software)
Environmental 10degrees celsius-30degrees celsius ; Humidity: 20%-75% RH ;Atmosphere Pressure 86Kpa-106Kpa

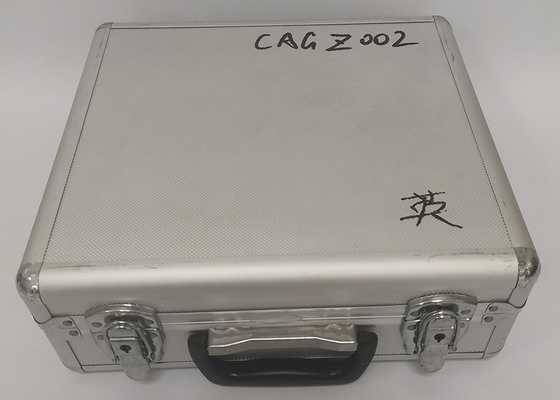

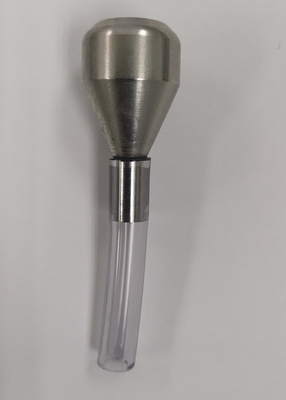

Standard feathure suitcase ;charger;sampling head;line of communication;communication software ;Automatic Purifier
Optional component External printer



Features of Y09-3016 0.1cfm Handheld Air Dust Particle Counter In Cleanroom

  • 0.3 - 25 μm
  • 0.1 CFM (2.83LPM) Flow Rate
  • View 6 Particle Sizes Simultaneously
  • Designed for ISO 21501-4 Compliance: Unit-to-Unit Accuracy and Repeatability
  • Bright 3.5" (8.89 cm) Color Touch Screen Display
  • Removable / Rechargeable Li-Ion Battery
  • Large Memory for Storing Data (1000 Samples)
  • Temperature / Relative Humidity Probe Included
  • Internal Audible Alarm
  • Lightweight

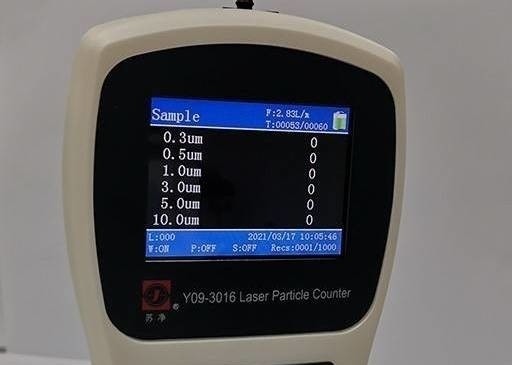

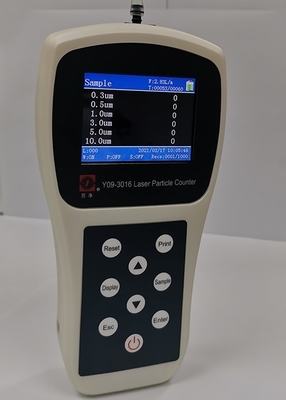

The picture of Y09-3016 0.1cfm Handheld Air Dust Particle Counter In Cleanroom
