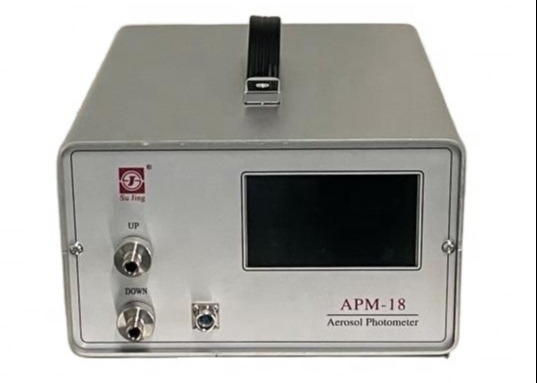

Aerosol Photometer Integrity / Leak Testing Of HEPA Filtration Systems

Aerosol Photometer Integrity / Leak Testing Of HEPA Filtration Systems
Aerosol Photometer Integrity / Leak Testing Of HEPA Filtration Systems
video play

Large Image :  Aerosol Photometer Integrity / Leak Testing Of HEPA Filtration Systems

Product Details:
Place of Origin: China
Brand Name: SUJING
Model Number: APM-18
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detailed Product Description
Name: Apm-18 Digital Aerosol Photometer For Filter Testing Repeatability: 0.5% Of Readings ≥0.01% To 100%
Sensitivity: 1% Of Readings ≥0.01% To 100% Flow Control: Pulse Width Modulation (PWM) Control Ensures Sampling Rate Of 1cfm (28.3lpm) +/- 10% In All Applications.
Auto Zero: Automatically Establishes Zero Reading At Startup Dynamic Range: Up To 600 Micrograms Per Liter
High Light:

Filter Testing Digital Photometer

,

HEPA Filtration Systems Aerosol Photometer

,

Filter Testing Aerosol Photometer

Aerosol Photometer integrity/leak testing of HEPA filtration systems ​



Digital Photometer is portable, yet rugged, and the ideal instrument for in-situ filtration system integrity testing. During the High Efficiency Penetration Air-filter running, if any leakage or allowed because of not fully installed happened, the intended cleaning effect will not be achieved, so, it’s necessary to detect leaks in high efficiency filtration systems (HEPA & ULPA). To validate the integrity of a filtration system, a known challenge agent (such as Aerosol Generator) consisting of an airborne test aerosol is generated and introduced upstream of the filter. The challenge agent provides particulate matter upstream of the filter to allow measurements downstream of the filter. To take the Photometer for checking the upstream aerosol concentration and comparing with the downstream aerosol with the use of the scanning probe, the leakage of HEPA will be detected for the efficiency.


Features and Benefits of aerosol photometer
  • long life laser light source;
  •  high precision photoelectric multiplier tube detection;
  •  can set PAO, DOP and other types of aerosols;
  • equipped with a dedicated handheld device to achieve control, display and sampling function;
  •  large capacity data storage, real-time data storage;
  • more than the setting alarm sound and light alarm;
  • can be obtained by U disk or thermal printer to print historical data;
  •  can print leakage rate and other monitoring data in real time;
  •  through the special software, the sampling data can be imported into PC;
  •  automatic fault detection.

Application of digital aerosol photometer

  • leakage detection of clean room
  • VLF bench
  • biosafety cabinet
  • glove box
  • HEPA vacuum cleaner
  • HVAC system
  • HEPA filter
  • negative pressure filtering system
  • operating theatre
  • nuclear filter system
  • collection protect filter
APM-18 photometer Specifications
Dynamic Range Up to 600 micrograms per liter
Reagent Settings PAO-4, DOP, Ondina, Mineral Oil, Paraffin
Auto Zero Automatically establishes zero reading at startup
Sensitivity 1% of readings ≥0.01% to 100%
Repeatability 0.5% of readings ≥0.01% to 100%
Flow Control Pulse Width Modulation (PWM) control ensures sampling rate of 1cfm (28.3lpm) +/- 10% in all applications.
Light Source Solid State, rated for life of instrument
Reporting Continuous, Summary, and Monitoring modes
Alarm User selectable audible, visual, and vibratory alarms notify the user when the user defined set point is exceeded.
Size 260 (W)X160(H)X360(D)
Weight 10Kg
Output Wireless printer, USB interface
Power 220VAC, 50/60HZ
Standards compliance NSF 49, IEST, ISO-14644
