5 LCD Display Air Flow Hood For Clean Room Air Flow Testing

Basic Information
Place of Origin: China
Brand Name: Sujing
Model Number: FLY-IB
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 5 work days
Payment Terms: T/T, MoneyGram
Supply Ability: 800/per month
Detail Information
Name: Air Flow Hood For Clean Room Air Flow Testing Display Screen: 5 LCD Touch-screen Display
Usage Temperature: 0 ~ +60 °C Printer: A Portable Wireless Bluetooth Printer
Usage Environment: Neutral Gas Power Supply: Rechargeable Lithium Battery7.4V,2AH
High Light:

CleanRoom Air Flow Hood


5 LCD Display Air Capture Hood


5 LCD Display Air Flow Hood

Product Description

Air Flow Hood For Clean Room Air Flow Testing ​


Air Capture Hood is used to measure the air volume flowing through air-outlet, diffusers and grilles. Air Capture Hood has reached the same level of the similar products internationally on accuracy and performance.Its high reliability ensures the measurements to be accurate, the measurements can be saved as well. Sizes for its cover, random accessories, calibration certification and carrying case can be different according to the Air inlet size..


Specification of airflow capture hood


Prameter FLY-1B (W Sensor) FLY-1 (L Sensor)
Air Volume Range

Supply air:80 ~ 4000 m3/h

Return air:80 ~ 1000 m3/h

Supply air:150 ~ 4000 m3/h

Return air:150 ~ 900 m3/h

Accuracy. ±3% reading±10 m3/h ±5% FS
Resolution 1 m3/h
Differential Pressure Range -100 ~ +450 Pa -5 ~ +125 Pa

0 ~ 100 Pa,1.0% FS

100 ~ 450 Pa,3.5% reading

±1.5% FS
Resolution 0.01Pa
Temperature Range 0 ~ +60
Accuracy. ±2% FS
Resolution 0.1
Memory Apace / 2000 groups

Configuration information of airflow capture hood

Display screen .5 LCD touch-screen display
Shell ABS engineering plastic
Power supply Rechargeable lithium battery7.4V,2AH
Usage environment Neutral gas
Usage temperature 0 ~ +60 °C
Operating language English
Printer A portable wireless bluetooth printer


Appearance and structure design of airflow capture hood


1. New 5-inch color touch, visual display, easy operation.

2. ABS engineering plastic shell, lightweight, easy to carry.

3. Host is removable for easily recharging.


Function design of airflow capture hood


1. New differential pressure sensor can measure the negative differential pressure, achieve two-way air flow test of the supply air and the return air.

2. User can select whether the atmospheric pressure and temperature are compensated automatically for the measured air flow value or not.

3. Built-in Bluetooth module can achieve wireless print, measure and record simultaneously.

4. The massive historical storage data can be queried, deleted and printed by Bluetooth printer

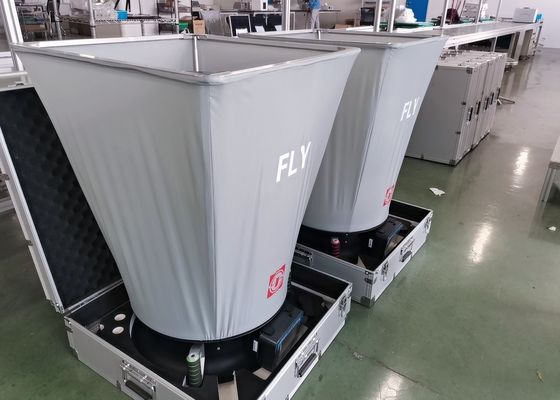

5 LCD Display Air Flow Hood For Clean Room Air Flow Testing 0

1. Handle  2. LCD Display  3. Base  4. Bluetooth light indictor  5. Flow sensing grid 6. Sensor

7Nozzle  8. Host bracket   9. Host 10. Temperature and humidity sensor probe

11. Support Fixing 12. Fast measure button  13. Power Switch  14. Fix Flute of air sampler

15. Support pole  16. Fabric hood  17. Frame


5 LCD Display Air Flow Hood For Clean Room Air Flow Testing 1
