| Place of Origin: | China |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Y09-PM |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Air Quality Monitor Dust Detector PM1.0, PM2.5, PM10 | Outside Dim: | 130*220*45(Wide*High*Deep) |
|---|---|---|---|
| Detection Range: | 0.1-999.9μg /m3 | Zero Count: | <=10min |
| Printer: | External Thermal Printer(optional) | Power Source: | DC8.4 V Built-in Lithium Battery |
| High Light: | PM2.5 Air Quality Monitor Dust,PM1.0 Air Quality Monitor Dust,PM10 Air Quality Dust Monitor |
||
Air Quality Monitor Dust Detector PM1.0, PM2.5, PM10
Air Quality Monitor
air quality detector is a measuring instrument of laser scattering dust particles (PM1.0, PM2.5, PM10). It is mainly used for measuring the concentration of dust particles in non-explosion-proof industrial sites. The product has the characteristics of fast response, high sensitivity, good stability, English interface, easy installation and so on.
PM1 PM2.5 PM10 Particle Counter Dust Pollution Detector adopts Light scattering principle. When the particles go through the light sensitive area, there is luminous flux scatter with a certain proportion of particle size. The concentration of gathered particles will be tested.
The specification of air quality monitor
| Model | Y09-PM (Handheld) |
| Outside Dim | 130*220*45(Wide*High*Deep) |
| Display | LCD |
| Weight | 0.6kg |
| Maximum consumption | 10W |
| Power Source | DC8.4 V built-in Lithium Battery |
| Size channels | PM1.0 PM2.5 PM10 |
| Flow Rate | 2.83L/min (Imported Pump) |
| Sample Time | 0-999999s Selectable |
| Zero Count | <=10min |
| Location Labels | 0-999 |
| Printer | External thermal printer(optional) |
| Detection Range | 0.1-999.9μg /m3 |
| Data Storage | 1000 records |
| Light Source | Laser Diode (30000 hours mean time between failures) |
| Operating Time | 5 hours |
| Environmental | Temperature:10-40℃;Humidity:<85%RH;Atmosphere Pressure:86-106Kpa |
| Accessories | Carry case ;zero count filter; AC adapter; pc cable; pc software |

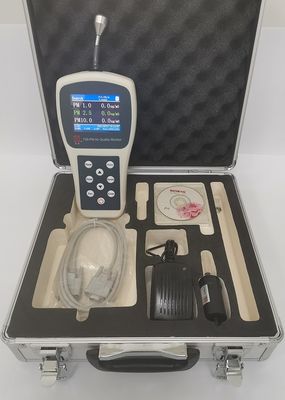

The picture of air quality monitor
