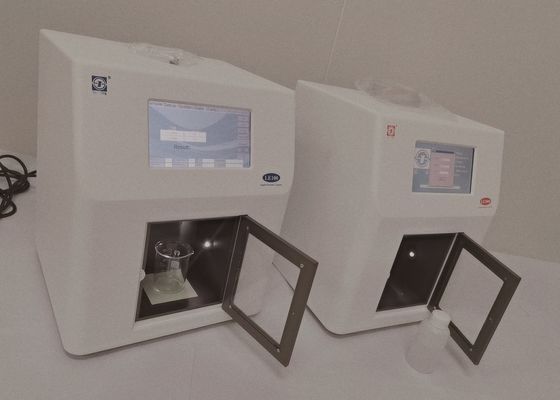

10000 Particles/Ml Portable Liquid Particle Counter For Wide Range Of Applications
|
10000 Particles/Ml Portable Liquid Particle Counter For Wide Range Of Applications
| Brand Name: | SUJING |
| Model Number: | LE100 |
| MOQ: | 1 |
| Price: | Negotiation |
| Payment Terms: | TT100% |
| Supply Ability: | 5000units/week |
10000 Particles/Ml Liquid Particle Counter
,Portable Fluid Particle Counter
Product Description:
The Liquid Particle Counter is an optical particle counter that can measure particles in the range of 2 to400 micrometers. Constructed with high-quality ABS material, it has a weight of 11 kg and provides a counting efficiency of 99.9%. It can accurately measure and analyze the amount of particles in liquids, providing reliable results with its high-precision optical particle counting technology.
| Technical parameters | liquid particle counter |
| Particle size range | 2-400 μm |
| Particle size channel | 24 |
| Maximum detection concentration | 10000 particles/ml |
| Accuracy | ±10% |
| Repeatability | RSD<2% (particles>1000 per ml, 5ml sample) |
| Resolution | <10% (U.S.P, ISO 21501) |
| Syringe specifications | 1ml, 5ml, 10ml*, 25ml |
| Sampling speed | 20 ml/min* |
| Sample volume accuracy | ±1% |
| Minimum sampling volume | 0.2ml** |
| Sensor material | 316 stainless steel, quartz glass, PTFE, NBR |
| Power supply | AC 100~240V, 50/60HZ |
| Mixing method | Magnetic stirrer (speed adjustable) |
| Data output | RS232 port; USB; built-in thermal printer |
| Display output | 7 inch LCD color touch screen |
| Size | 320(L)×309(W)×394(H) mm |
| Weight | 11.0 kg |
| Operating environment | Temperature 10-40 ℃; RH 0 ~ 95% non-condensing |
| Software system | LE-Assistant (optional) |
|
* Standard configuration ** Under 1ml syringe specifications the minimum sampling volume is 0.2ml, under the standard configuration, the minimum sampling volume is 0.4ml |
|
| 8.Exhaust fan | 1. Display |
| 9.heat emission hole | 2. Door of sample chamber |
| 10. Power switch | 3. Thermal printer |
| 11. AC power outlet and fuse | 4. Syringe |
| 12. R232 port | 5. Sample tube |
| 13. Sample drain | 6. LED chamber light |
| 14. USB port | 7. Stirrer |
Components of liquid particle counter
| The instrument ×1 | Power cord ×1 |
| Fuse ×1 | Detecting cup ×1 |
| Stir rod ×1 | Operation manual ×1 |
| Drain line tube ×1 | Testing report ×1 |
| Touch pen ×1 | Quality certificate ×1 |
| Printing paper ×1 | Warranty card ×1 |
| Packing list ×1 |
Application of liquid particle counter
Injections testing under CP, USP, EP, JP and other standards
1.Cleanliness detecting of medical equipment / parts
2.Filtration efficiency detection
3.Laboratory water testing
Customization:
- Brand Name: SUJING
- Model Number: LE100
- Place of Origin: China
- Packaging Details: Wooden case
- Payment Terms: TT100%
- Product Name: Liquid Particle Counter
- Measuring Range: 0.1-100μm
- Material: ABS
- Weight: 3.5kg
- Repeatability: ±1%
SUJING LE100 Liquid Particle Counter is an ideal choice for measuring oil and water particles with a measuring range of 0.1-100μm, made of ABS with a weight of 3.5kg and repeatability of ±1%.
Support and Services:
We offer technical support and service for our Liquid Particle Counter product. Our experts are available to help you with installation, troubleshooting, and maintenance for the duration of your product's lifetime.
For technical support, you can contact us by phone or email and we will respond promptly. Our team of experienced engineers will help you identify and resolve any issues you might have.
We also provide service and maintenance for your product, both on-site and remotely. Our engineers are trained to handle any issues you might have, and we will strive to resolve any technical issues quickly and efficiently.
For more information on our Liquid Particle Counter product, please visit our website or contact us directly.
Packing and Shipping:
The Liquid Particle Counter is packaged and shipped in a sturdy cardboard box or wooden crate. It is also secured with foam or shock-resistant material. The box is labeled with the product's name and specifications to ensure accurate delivery. Additionally, all packages are also insured and tracked for extra protection and peace of mind.
| Technical parameters | liquid particle counter |
| Particle size range | 2-400 μm |
| Particle size channel | 24 |
| Maximum detection concentration | 10000 particles/ml |
| Accuracy | ±10% |
| Repeatability | RSD<2% (particles>1000 per ml, 5ml sample) |
| Resolution | <10% (U.S.P, ISO 21501) |
| Syringe specifications | 1ml, 5ml, 10ml*, 25ml |
| Sampling speed | 20 ml/min* |
| Sample volume accuracy | ±1% |
| Minimum sampling volume | 0.2ml** |
| Sensor material | 316 stainless steel, quartz glass, PTFE, NBR |
| Power supply | AC 100~240V, 50/60HZ |
| Mixing method | Magnetic stirrer (speed adjustable) |
| Data output | RS232 port; USB; built-in thermal printer |
| Display output | 7 inch LCD color touch screen |
| Size | 320(L)×309(W)×394(H) mm |
| Weight | 11.0 kg |
| Operating environment | Temperature 10-40 ℃; RH 0 ~ 95% non-condensing |
| Software system | LE-Assistant (optional) |
|
* Standard configuration ** Under 1ml syringe specifications the minimum sampling volume is 0.2ml, under the standard configuration, the minimum sampling volume is 0.4ml |
|
| 8.Exhaust fan | 1. Display |
| 9.heat emission hole | 2. Door of sample chamber |
| 10. Power switch | 3. Thermal printer |
| 11. AC power outlet and fuse | 4. Syringe |
| 12. R232 port | 5. Sample tube |
| 13. Sample drain | 6. LED chamber light |
| 14. USB port | 7. Stirrer |
Components of liquid particle counter
| The instrument ×1 | Power cord ×1 |
| Fuse ×1 | Detecting cup ×1 |
| Stir rod ×1 | Operation manual ×1 |
| Drain line tube ×1 | Testing report ×1 |
| Touch pen ×1 | Quality certificate ×1 |
| Printing paper ×1 | Warranty card ×1 |
| Packing list ×1 |
Application of liquid particle counter
-
Injections testing under CP, USP, EP, JP and other standards -
Cleanliness detecting of medical equipment / parts -
Filtration efficiency detection -
Laboratory water testing
