Six Channels Portable Air Particle Counter For Cleanroom 28.3L/Min

Certification
China Suzhou Sujing Automation Equipment corporation limited certification
China Suzhou Sujing Automation Equipment corporation limited certification
I'm Online Chat Now

Six Channels Portable Air Particle Counter For Cleanroom 28.3L/Min

Six Channels Portable Air Particle Counter For Cleanroom 28.3L/Min
Six Channels Portable Air Particle Counter For Cleanroom 28.3L/Min

Large Image :  Six Channels Portable Air Particle Counter For Cleanroom 28.3L/Min

Product Details:
Place of Origin: JIANGSU
Brand Name: SUJING
Model Number: Y09-310NW
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 500unit/per month
Detailed Product Description
Name: Y09-310NW Six Channels Air Portable Particle Counter For Cleanroom Size Channels: 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate: 28.3L/min (Imported Pump) Operating Time: More Than 5.5 Hours
Class: ISO14644-1:2015 Maximum Rated Particle Concentration: 35000 Particles/L
High Light:

Six Channels Portable Air Particle Counter

,

7 Inch Screen Air Particle Counter

,

Cleanroom Air Particle Counter 28.3L/min

Y09-310NW Six Channels Air Portable Particle Counter For Cleanroom



The Y09-310NW laser particle counter is in compliance with the international standards (JISB9925:1997 and ISO14644-1) and has CE certification. compared to other manufacturers in the market; it features high sensitivity, multiple functional capabilities, and is slim, lightweight and very user friendly.



The portable laser particle counter simultaneously measures six channel sizes that are configurable by the user. The data is recorded in the embedded flash memory and can be downloaded with supplied software through either a USB or RS232 interface.



Y09-310NW Air Particle Counter uses a laser diode light source, with touch screen (LCD) display, having such advantages like reasonable structure, high accuracy large flow rate, short sampling time, simple and convenient operation. The testing data can be directly stored in the U disk without computer acquisition, also it is micro computer controlled, can print sampling results by miniature built-in thermal printer. The instrument is widely used in electronic, optical, chemical, food, cosmetics, pharmaceuticals, biological products, aviation and aerospace etc.



The specification of portable particle counter



Outside Dim 245*268*160 (mm3); (Wide*Deep*High)
Display 7 inch touch screen
Weight 3.5Kg
Max. Consumption 80W
Power Source DC16.8V built-in Lithium Battery; AC 220V ± 10%
Size Channels 0.3, 0.5, 1, 3, 5, 10 μm
Calculation 95% UCL calculation, can display and print particle concentration (particles / cubic meter, particles /cubic feet)
Flow Rate 28.3L/min (Imported Pump)
Sample Time 6s---999999s (Selectable)
Cycles 0-99
Hold Time 0-9999s
Delay Time 5-999s
Zero Court <=10min
Location 1-99
Alarm ISO Class
Printer Built-in Thermal Printer
Data Storage 20000Samples /300 Samples of UCL (With PC Software)
Light Source Laser Diode (30,000 hours Mean Time Between Failures)
Counting efficiency 50% @ 0.3μm and 100% for particles >0.45μm (ISO21501)
Maximum Rated Particle Concentration 35000 particles/L
Operating Time More than 5.5 hours
Environmental Temperature Temperature :10 -35; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa

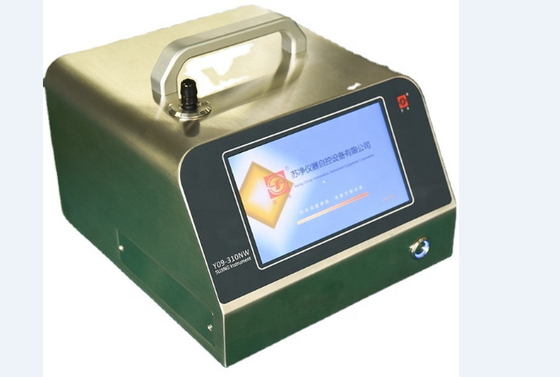

Six Channels Portable Air Particle Counter For Cleanroom 28.3L/Min 0



Features of air particle counter

1. Sample volume 28.3 LPM (1.0CFM).
2. Simultaneously display of up to six particle sizes

3. 20000-record data storage memory

4. Meet the requirements of ISO14644-1:2015

​5. Built-in Thermal Printer

6. Low power display
