| Detection Range: | 2~ 400μm | Weight: | 11kg |
|---|---|---|---|
| Display: | 7inch LCD Color Touch Screen | Sample Stirring Method: | Magnetic Stirring (adjustable) |
| Data Output: | RS232 Port, USB, Built-in Printer | Warranty Time: | 1 Year |
| High Light: | 400um Cleanroom Particle Counter,Magnetic stirring cleanroom Particle Counter,60HZ Cleanroom Particle Counter |
||

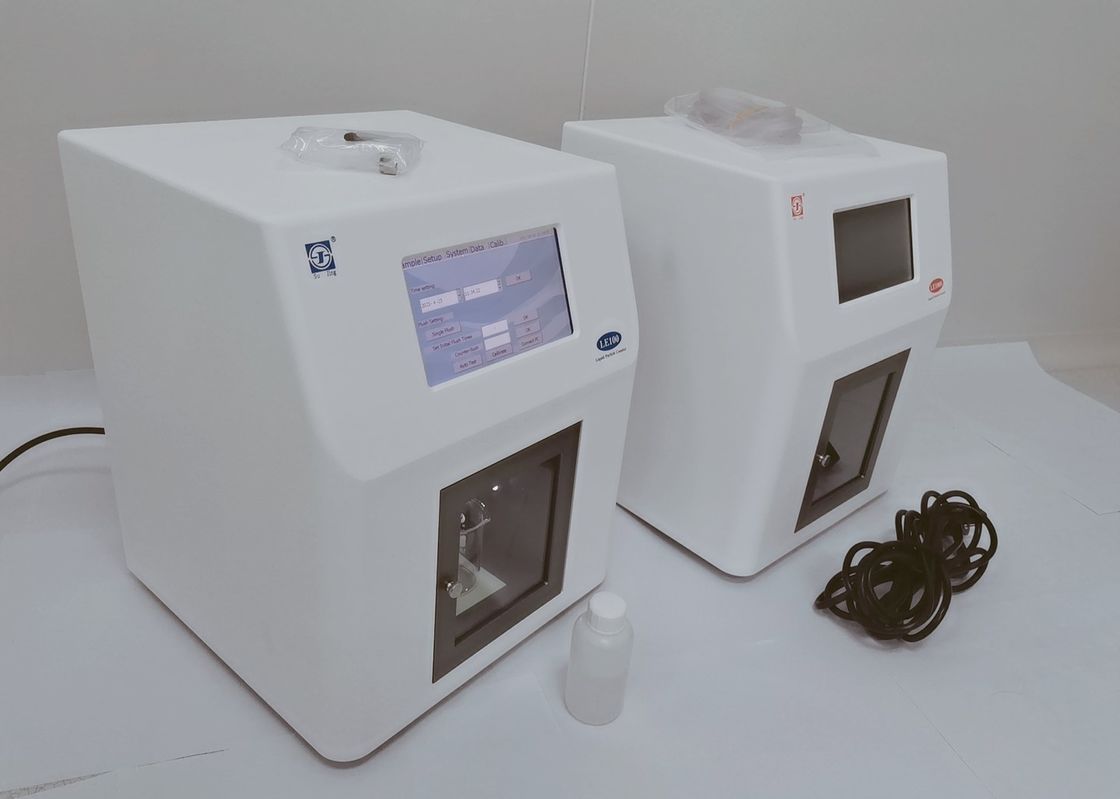

LE100 Liquid Particle Counter USP788 Pharma Cleanroom Factory
Liquid portable particle counter (updated from model L01A-24) is mainly used for detection of insoluble particles in injection, infusion, sterile powder under USP <788> ”Particulate Matter in Injections”, and particle contamination detection of infusion equipment, anesthesia equipment, medical packaging materials. It can also be used for particle detection in organic, colored and transparent, oil-based liquid samples. The instrument can not be used to detect corrosive liquids.
Specification of liquid particle counter
Particle size range: 2~400μm
Number of channel sizes
24 channels, 2~100μm sizes can be set arbitrarily by user
Accuracy: ±10%
Resolution: > 90% (2015 CP), <10%(USP, ISO21501)
Max. sample concentration: 10000 particles/ml
Syringe specifications: 1ml, 5ml, 10ml*, 25ml
Sample flow rate: 20 ml/min
Sample accuracy: ±1%
Min. Sample volume: 0.2ml**
Sensor material
316 stainless steel, quartz glass, TEFLON
Display
7inch LCD color touch screen
Data output
RS232 port, USB, built-in printer
Power supply: AC 100~240V, 50/60HZ
Dimension: 320(l) ×309(w) ×394(H) mm
Weight: 11.0kg
Operating environment
Temperature 5 -40 ℃; Relative humidity 0 ~ 95%, non-condensing
Sample stirring method
Magnetic stirring (adjustable)
Software system: LE-Assistant
* Standard configuration
** Under 1ml syringe specifications the minimum sampling volume is 0.2ml, under the standard configuration, the minimum sampling volume is 0.4ml
