| Place of Origin: | China |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Y09-350 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Six-Channels Portable Particle Counter In Cleanroom | Model: | Y09-350 |
|---|---|---|---|
| Size Channel: | 0.3,0.5, 1, 3, 5, 10 μm | Flow Rate: | 50LPM |
| Zero Count: | ≤10min | Maximum Rated Particle Concentration: | 35000 Particles/L |
| Warranty Time: | 1 Year | ||
| High Light: | DC16.8V Portable Particle Counter,Six Channels cleanroom Particle Counter,50LPM Portable Particle Counter |
||
Six-Channels Portable Particle Counter In Cleanroom
The Y09-350 portable particle counter are pharmaceutical industrial grade 6-channel portable particle counters that come in your choice of 1 CFM, 50 LPM or 100 LPM flow rates. Each model comes standard with an RS-232 serial interface and USB.
Seamless stainless steel enclosure simplifies cleaning and sanitation. A completely sealed front panel display prevents biocides, IPA, and other cleaning fluids from accidently leaking into the interior of the particle counter, thus eliminating the risk of short circuit or premature catastrophic damage to the sensor.
Specification of six-channels portable particle counter
| Model | Y09-350 |
| Outside Dim | 268×192×292(mm3) |
| Display | 7inch Color Screen |
| Weight | 8.4kg |
| Max.Consumption | 80W |
| Power Source | DC16.8V |
| Size Channels | 0.3,0.5, 1, 3, 5, 10μm |
| Flow Rate | 50L/min |
| Zero Count | ≤10min |
| Hold Time | 0-9999s |
| Delay Time | 5-999s |
| Printer | Built-in Thermal Printer |
| Data Storage | 20000 Samples/300Samples of UCL(With PC Software) |
| Maximum Rated Particle Concentration | 35000 particles/L |
| Operating Time | More than 5.5 hours |
| Material | SUS316L Stainless Steel |
| Class | ISO14644-1:2015/GMP:2015 |
| Warranty Time | 1 Year |

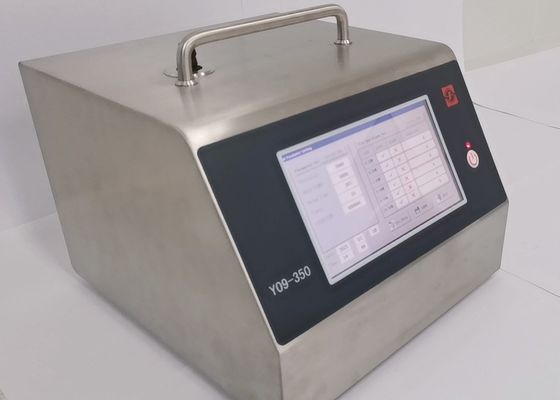

Picture of Y09-350 Laser Particle Counter
