| Place of Origin: | China |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Y09-3016 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | 2.83LPM Handheld Laser Particle Counter | Size Channel: | 0.3, 0.5, 1, 3, 5, 10 μm |
|---|---|---|---|
| Light Source: | Laser Diode | Flow Rate: | 0.1CFM |
| Alarm: | ISO14644-1:2015/GMP:2015 | Data Storage: | 1000 Samples (With PC Software) |
| High Light: | Spot Checking Handheld Laser Particle Counter,0.1CFM Handheld Laser Particle Counter,2.83LPM Handheld Laser Particle Counter |
||

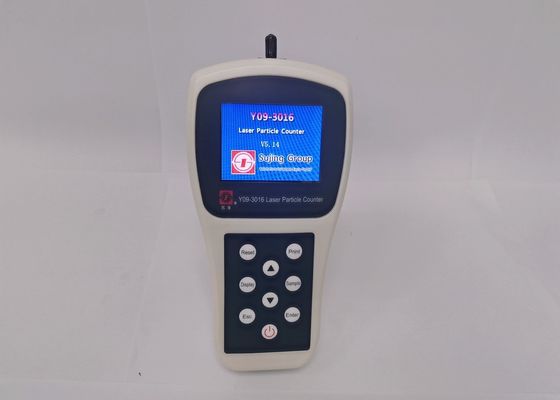

2.83LPM Handheld Laser Particle Counter
SUJING's 2.83LPM Handheld Particle Counters are feature-rich instruments that are ideal for spot-checking inside of your critical environments or Indoor Air Quality applications. With its compact size and weight along with its sleek handle, you can utilize this unit with ease. These units provide immediate results that allow you to proactively monitor your environment.
The parameter of handheld particle counter
| Model | Y09-3016 |
| Outside Dim | 300*360*126 mm3(Wide*Deep*High) |
| Display | LCD |
| Weight | 0.7kg |
| Battery | (Lithium Ion Battery),7.2V,2200mAh |
| Power Source | Li-ion charger ,8.4V DC,1A:9-250V AC, 50-60Hz |
| Size Channels | 0.3, 0.5, 1, 3, 5, 10 μm |
| Flow Rate | 2.83L/min |
| Sample Time | 1s-99h |
| Cycles | 0-99 |
| Hold Time | 0-999sec |
| Delay Time | 0-99sec |
| Light source | Laser Diode |
| Zero Court | <=10min |
| Alarm | ISO14644-1:2015/GMP:2015 |
| Coincidence Loss | 5%,2000000ps/cf |
| Operating Time | more than 5.5 hours |
| output | RS-232 to pc or printer via optional cable |
| Location Labels | 0-999 |
| Data Storage | 1000 Samples (With PC Software) |
| Environmental | 10degrees celsius-40degrees celsius ; Humidity: 20%-90% RH ;Atmosphere Pressure 86Kpa-106Kpa |

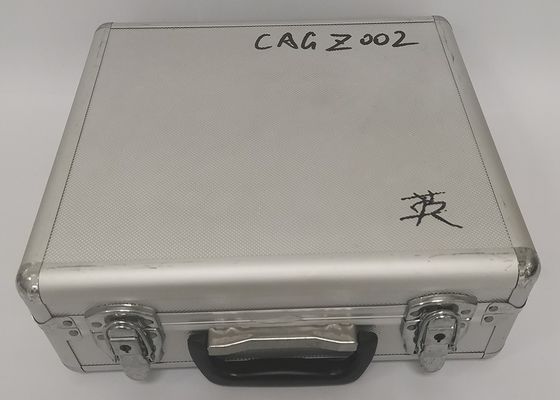

| Standard feathure | suitcase ;charger;sampling head;line of communication;communication software ;Automatic Purifier |
| Optional component | External printer |
Application
• Cleanroom Monitoring
• Facility Certification
• Facility Monitoring
• Filter Testing
• Cleanroom Laundries
• Cleanroom Packing
• Aerospace
• Hospital Surgical Rooms
• Pharmaceutical
• Paint Spray Booths
•Food Processing Area
•Hard Disk Drive Manufacturing
