| Place of Origin: | China |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Y09-3016 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Y09-3016 Air Particle Counter 2.83L/Min For Cleanroom Monitoring | Size Channel: | 0.3, 0.5, 1, 3, 5, 10 μm |
|---|---|---|---|
| Flow Rate: | 2.83L/min | Alarm: | ISO14644-1:2015/GMP:2015 |
| Data Storage: | 1000 Samples (With PC Software) | Warranty Time: | 1 Year |
| High Light: | Air Particle Counter 2.83L/Min,Y09-3016 Air Particle Counter,7.2V Air Particle Counter |
||
Y09-3016 Air Particle Counter 2.83L/Min For Cleanroom Monitoring
Handheld 3016 particle counters feature 0.3 sensitivities and are the most advanced handheld particle counters on the market. Providing up to 6 particle size channels of simultaneous counting, SUJING Handheld Particle Counters can display cumulative as well as Temperature/Relative Humidity data on the fast and easy to read color touch screen. Handheld Particle Counters can hold up to 1000 records of particle data .Data is very easily downloaded using the Data Transfer Software.
The parameter of handheld particle counter
| Outside Dim | 300*360*126 mm3(Wide*Deep*High) |
| Display | LCD |
| Weight | 0.7kg |
| Battery | (Lithium Ion Battery),7.2V,2200mAh |
| Power Source | Li-ion charger ,8.4V DC,1A:9-250V AC, 50-60Hz |
| Size Channels | 0.3, 0.5, 1, 3, 5, 10 μm |
| Flow Rate | 2.83L/min |
| Sample Time | 1s-99h |
| Cycles | 0-99 |
| Hold Time | 0-999sec |
| Delay Time | 0-99sec |
| Light source | Laser Diode |
| Zero Court | <=10min |
| Alarm | ISO14644-1:2015/GMP:2015 |
| Coincidence Loss | 5%,2000000ps/cf |
| Operating Time | more than 5.5 hours |
| output | RS-232 to pc or printer via optional cable |
| Location Labels | 0-999 |
| Data Storage | 1000 Samples (With PC Software) |
| Environmental | 10degrees celsius-30degrees celsius ; Humidity: 20%-75% RH ;Atmosphere Pressure 86Kpa-106Kpa |
| Standard feathure | suitcase ;charger;sampling head;line of communication;communication software ;Automatic Purifier |
| Optional component | External printer |
Application of handheld particle counter
• Cleanroom Monitoring
• Facility Certification
• Facility Monitoring
• Filter Testing
• Cleanroom Laundries
• Cleanroom Packing
• Aerospace
• Hospital Surgical Rooms
• Pharmaceutical
• Paint Spray Booths
•Food Processing Area
•Hard Disk Drive Manufacturing

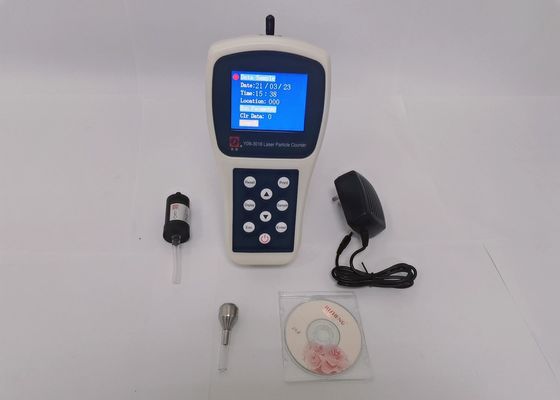

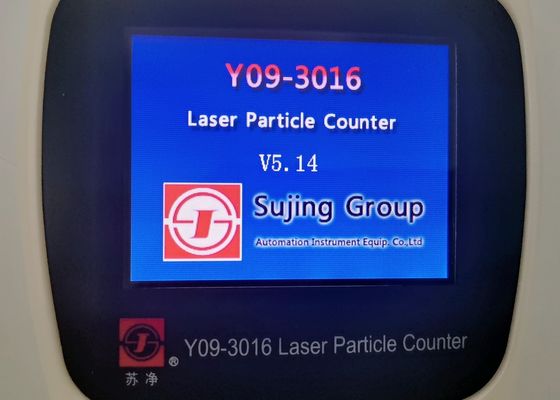

Picture of handheld particle counter
