Environmental Measurement Dust Particle Counter 2.83L/Min DC8.4V

Basic Information
Place of Origin: China
Brand Name: SUJING
Model Number: Y09-3016
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Name: Dust Particle Counter For Environmental Measurements Size Channel: 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate: 28.3L/min Alarm: ISO14644-1:2015/GMP:2015
Zero Court: <=10min Warranty Time: 1 Year
High Light:

DC8.4V Dust Particle Counter


Y09-3016 Dust Particle Counter


2.83L/min Dust Particle Counter

Product Description

 Dust Particle Counter For Environmental Measurements

The Dust Particle Counter is our newly develop portable laser dust particles counter which apply semiconductor laser sensor, can be connected to PC data collection system to remote control, so that can directly observe the testing situation, and the testing data can be analysis, processed and saved as Excel document.


Dust Particle Counter apply American micro-computer controlling and dealing technology, semi-conductor technology and imported air pump, with the character of multi-function, high precision measure, high speed, portable and easy to operate. The counter one time sampling can test the number of dust particles on different kinds of grain sizes.


The parameter of air particle counter

Model Y09-3016
Outside Dim 300*360*126 mm3(Wide*Deep*High)
Display LCD
Weight 0.7kg
Battery (Lithium Ion Battery),7.2V,2200mAh
Power Source Li-ion charger ,8.4V DC,1A:9-250V AC, 50-60Hz
Size Channels 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate 2.83L/min
Sample Time 1s-99h
Cycles 0-99
Hold Time 0-999sec
Delay Time 0-99sec
Light source Laser Diode
Zero Court <=10min
Alarm ISO14644-1:2015/GMP:2015
Coincidence Loss 5%,2000000ps/cf
Operating Time more than 5.5 hours
output RS-232 to pc or printer via optional cable
Location Labels 0-999
Data Storage 1000 Samples (With PC Software)
Environmental 10degrees celsius-30degrees celsius ; Humidity: 20%-75% RH ;Atmosphere Pressure 86Kpa-106Kpa
Standard feathure suitcase ;charger;sampling head;line of communication;communication software ;Automatic Purifier
Optional component External printer

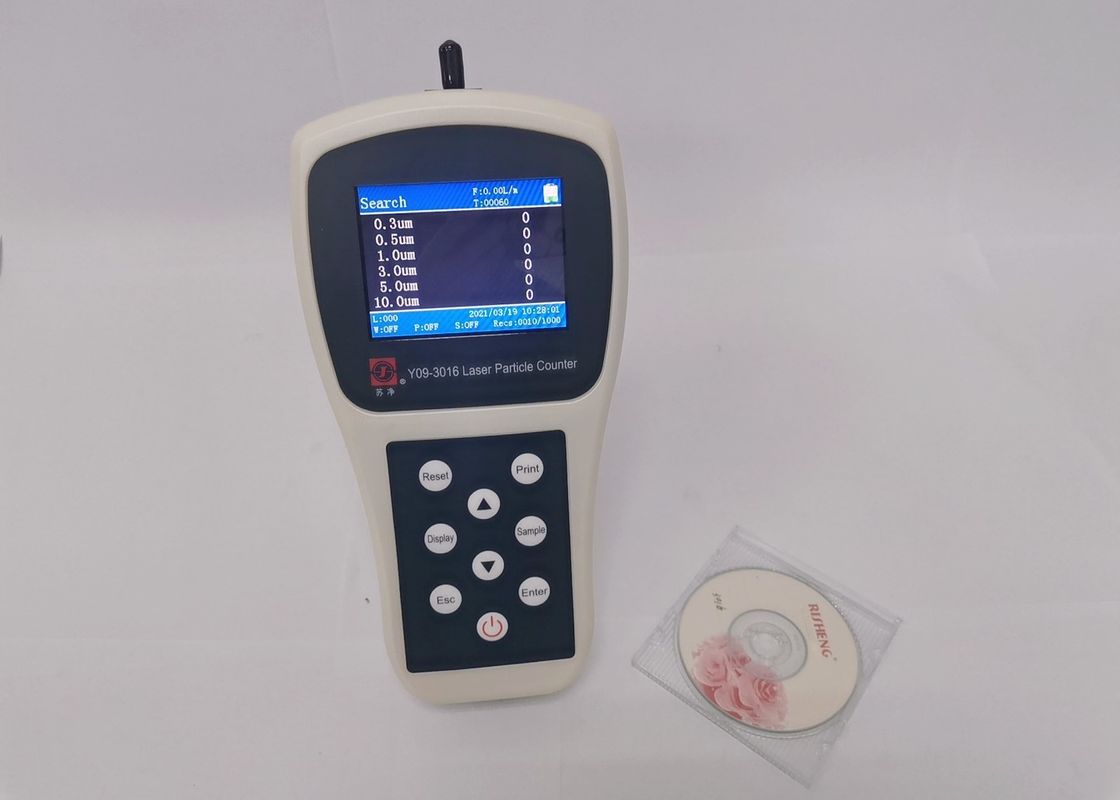

The picture of air particle counter

Environmental Measurement Dust Particle Counter 2.83L/Min DC8.4V 0
