Cleanroom Handheld Air Particle Counter 0.1CFM For Lab Instrument
|
Cleanroom Handheld Air Particle Counter 0.1CFM For Lab Instrument
| Brand Name: | SUJING |
| Model Number: | Y09-3016 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
Detail Information
Place of Origin:
China
Name:
Cleanroom Handheld Air Particle Counter For Lab Instrument
Size Channel:
0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate:
0.1CFM
Alarm:
ISO14644-1:2015/GMP:2015
Zero Court:
<=10min
Warranty Time:
1 Year
Packaging Details:
Carton
Delivery Time:
5 work days
Supply Ability:
800/per month
Highlight:
0.1CFM Handheld Air Particle Counter
,Cleanroom Handheld Air Particle Counter
,Lab Cleanroom Air Particle Counter
Product Description
Cleanroom Handheld Air Particle Counter For Lab Instrument
The Y09-3016 particle counter uses a laser light source and collection optics for particle detection. Particles scatter light from the light source in the direction of the collection optics. The collection optics focuses the light on a photoelectric cell that converts the bursts of light into electrical pulses. The pulse height is a measure of particle size. Pulses are counted and their intensity is measured for particle sizing. Results are displayed as particle count in the specified size channel.
The parameter of air particle counter
| Model | Y09-3016 |
| Outside Dim | 300*360*126 mm3(Wide*Deep*High) |
| Display | LCD |
| Weight | 0.7kg |
| Battery | (Lithium Ion Battery),7.2V,2200mAh |
| Power Source | Li-ion charger ,8.4V DC,1A:9-250V AC, 50-60Hz |
| Size Channels | 0.3, 0.5, 1, 3, 5, 10 μm |
| Flow Rate | 2.83L/min |
| Sample Time | 1s-99h |
| Cycles | 0-99 |
| Hold Time | 0-999sec |
| Delay Time | 0-99sec |
| Light source | Laser Diode |
| Zero Court | <=10min |
| Alarm | ISO14644-1:2015/GMP:2015 |
| Coincidence Loss | 5%,2000000ps/cf |
| Operating Time | more than 5.5 hours |
| output | RS-232 to pc or printer via optional cable |
| Location Labels | 0-999 |
| Data Storage | 1000 Samples (With PC Software) |
| Environmental | 10degrees celsius-30degrees celsius ; Humidity: 20%-75% RH ;Atmosphere Pressure 86Kpa-106Kpa |
| Standard feathure | suitcase ;charger;sampling head;line of communication;communication software ;Automatic Purifier |
| Optional component | External printer |

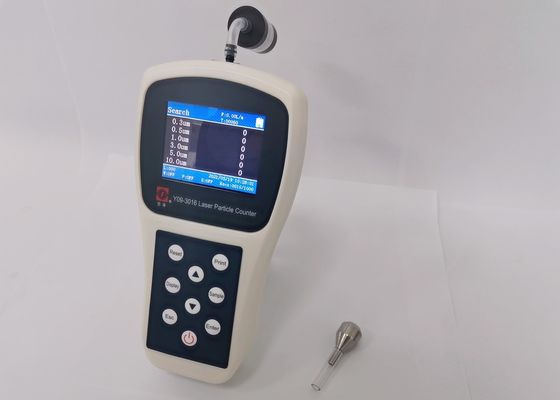

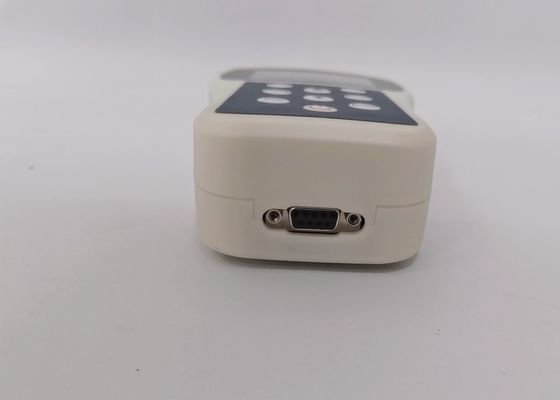

The picture of air particle counter
