| Place of Origin: | JIANGSU |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Y09-310NW |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500unit/per month |
| Size Channels: | 0.3, 0.5, 1, 3, 5, 10 μm | Flow Rate: | 28.3L/min (Imported Pump) |
|---|---|---|---|
| Operating Time: | More Than 5.5 Hours | Weight: | 3.5kg |
| Class: | ISO14644-1:2015 | Warranty Time: | 1 Year |
| High Light: | 1CFM portable air particle counter,28.3L/min portable air particle counter,Y09-310NW portable air particle counter |
||

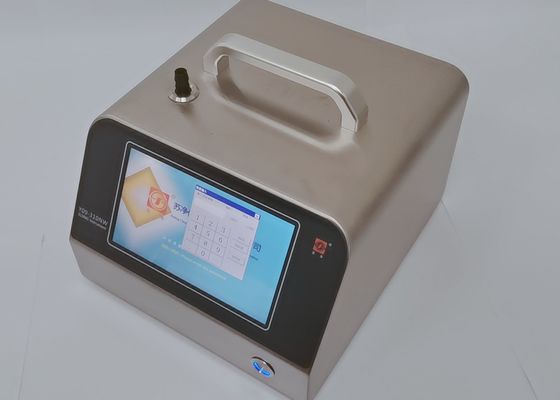

1CFM Portable Dust Particle Counter Lab Instrument
The Y09-310NW is the industry’s 28.3 LPM 0.3 micron portable designed for continuous use.
The specification of portable particle counter
| Outside Dim | 245*268*160 (mm3); (Wide*Deep*High) |
| Display | 7 inch touch screen |
| Weight | 3.5Kg |
| Max. Consumption | 80W |
| Power Source | DC16.8V built-in Lithium Battery; AC 220V ± 10% |
| Size Channels | 0.3, 0.5, 1, 3, 5, 10 μm |
| Calculation | 95% UCL calculation, can display and print particle concentration (particles / cubic meter, particles /cubic feet) |
| Flow Rate | 28.3L/min (Imported Pump) |
| Sample Time | 6s---999999s (Selectable) |
| Cycles | 0-99 |
| Hold Time | 0-9999s |
| Delay Time | 5-999s |
| Zero Court | <=10min |
| Location | 1-99 |
| Alarm | ISO Class |
| Printer | Built-in Thermal Printer |
| Data Storage | 20000Samples /300 Samples of UCL (With PC Software) |
| Light Source | Laser Diode (30,000 hours Mean Time Between Failures) |
| Counting efficiency | 50% @ 0.3μm and 100% for particles >0.45μm (ISO21501) |
| Maximum Rated Particle Concentration | 35000 particles/L |
| Operating Time | More than 5.5 hours |
| Environmental Temperature | Temperature :10 -35℃; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa |
Features of air particle counter
1. Sample volume 28.3 LPM (1.0CFM).
2. Simultaneously display of up to six particle sizes
3. 20000-record data storage memory
4. Meet the requirements of ISO14644-1:2015
