| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | Y09-550 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Y09-550 50LPM Laser Air Particle Counter Six Channels | Flow Rate: | 50LPM |
|---|---|---|---|
| Sensitivity: | 0.5 | Light Source: | Laser Diode |
| N.W: | 8.4KG | Warranty Ti,e: | 1 Year |
| High Light: | SUS316L Air Particle Counter,Cleanroom Laser Air Particle Counter,50LPM cleanroom Air Particle Counter |
||

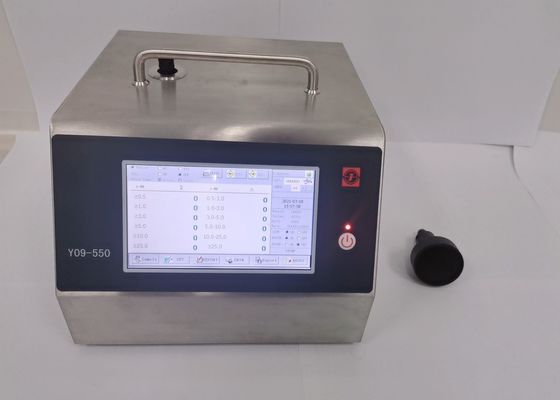

Y09-550 50LPM Laser Air Particle Counter Six Channels
The Y09-550 particle counters feature 0.5 sensitivities and are the most advanced portable particle counters on the market. Providing up to 6 particle size channels of simultaneous counting, Particle Counters can hold up to 20000 records of particle data .Data is very easily downloaded using the Data Transfer Software.
Specification of Air Particle Counter
| Model | Y09-550 |
| Outside Dim | 268×192×292(mm3) |
| Display | 7inch Color Screen |
| Weight | 8.4kg |
| Max.Consumption | 80W |
| Power Source | DC16.8V |
| Size Channels | 0.5, 1, 3, 5, 10, 25μm |
| Flow Rate | 50L/min |
| Sample Time | 6~999999s(Selectable) |
| Zero Count | ≤10min |
| Printer | Built-in Thermal Printer |
| Data Storage | 20000 Samples/300Samples of UCL(With PC Software) |
| Maximum Rated Particle Concentration | 35000 particles/L |
| Operating Time | More than 5.5 hours |
| Environmental | Temperature:10~35℃; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa |
| Material | SUS316L Stainless Steel |
| Class | ISO14644-1:2015/GMP:2015 |
Application of particle counter
• Cleanroom Monitoring
• Facility Certification
• Facility Monitoring
• Filter Testing
• Cleanroom Laundries
• Cleanroom Packing
• Aerospace
• Hospital Surgical Rooms
• Pharmaceutical
• Paint Spray Booths
•Food Processing Area
•Hard Disk Drive Manufacturing
