Filter Testing Laser Dust Cleanroom Particle Counter 50LPM

Basic Information
Place of Origin: China
Brand Name: Sujing
Model Number: Y09-550
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Name: 50LPM Laser Dust Particle Counter Cleanroom Filter Testing Flow Rate: 50LPM
Sensitivity: 0.5 Light Source: Laser Diode
N.W: 8.4KG Warranty Ti,e: 1 Year
High Light:

50LPM cleanroom particle counter

,

Y09-550 cleanroom particle counter

,

Laser Diode cleanroom particle counter


Product Description



50LPM Laser Dust Particle Counter Cleanroom Filter Testing

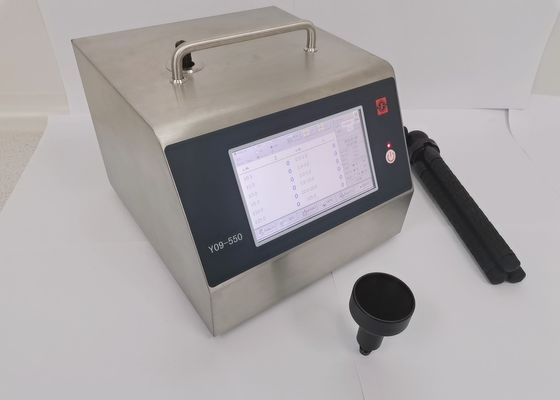

Y09-550 Laser Dust Particle Counter is a device for measuring dust particles with a sampling flow rate of 50lpm. As the particle count, the real-time display of particle data of  0.5, 1.0, 3.0, 5.0  10 and 25μm 6 channels can be switched to display the actual particle number or particle concentration value (1m3). The dust particle counter has built-in long-life laser diode, light collection elliptical lens and unique optical system to provide concentration measurement range. The dust particle counter has built-in vacuum pump, constant velocity sampling head, micro processing circuit, computer interface, and all information is displayed on the touch screen.

Specification of Air Particle Counter

Model Y09-550
Outside Dim 268×192×292(mm3)
Display 7inch Color Screen
Weight 8.4kg
Max.Consumption 80W
Power Source DC16.8V
Size Channels 0.5, 1, 3, 5, 10, 25μm
Flow Rate 50L/min
Sample Time 6~999999s(Selectable)
Zero Count ≤10min
Printer Built-in Thermal Printer
Data Storage 20000 Samples/300Samples of UCL(With PC Software)
Maximum Rated Particle Concentration 35000 particles/L
Operating Time More than 5.5 hours
Environmental Temperature:10~35; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa
Material SUS316L Stainless Steel
Class ISO14644-1:2015/GMP:2015
Warranty Time 1 Year



Filter Testing Laser Dust Cleanroom Particle Counter 50LPM 0



Application of particle counter



• Cleanroom Monitoring

• Facility Certification

• Facility Monitoring

• Filter Testing

• Cleanroom Laundries

• Cleanroom Packing

• Aerospace

• Hospital Surgical Rooms

• Pharmaceutical

• Paint Spray Booths

•Food Processing Area

•Hard Disk Drive Manufacturing
