Name: | Particle Counter | Size Channel: | 0.3, 0.5, 1, 3, 5, 10 μm |
---|---|---|---|
Flow Rate: | 0.1cfm | Light Source: | Laser Diode |

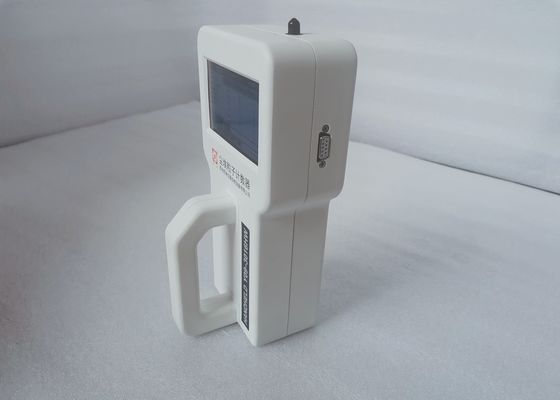

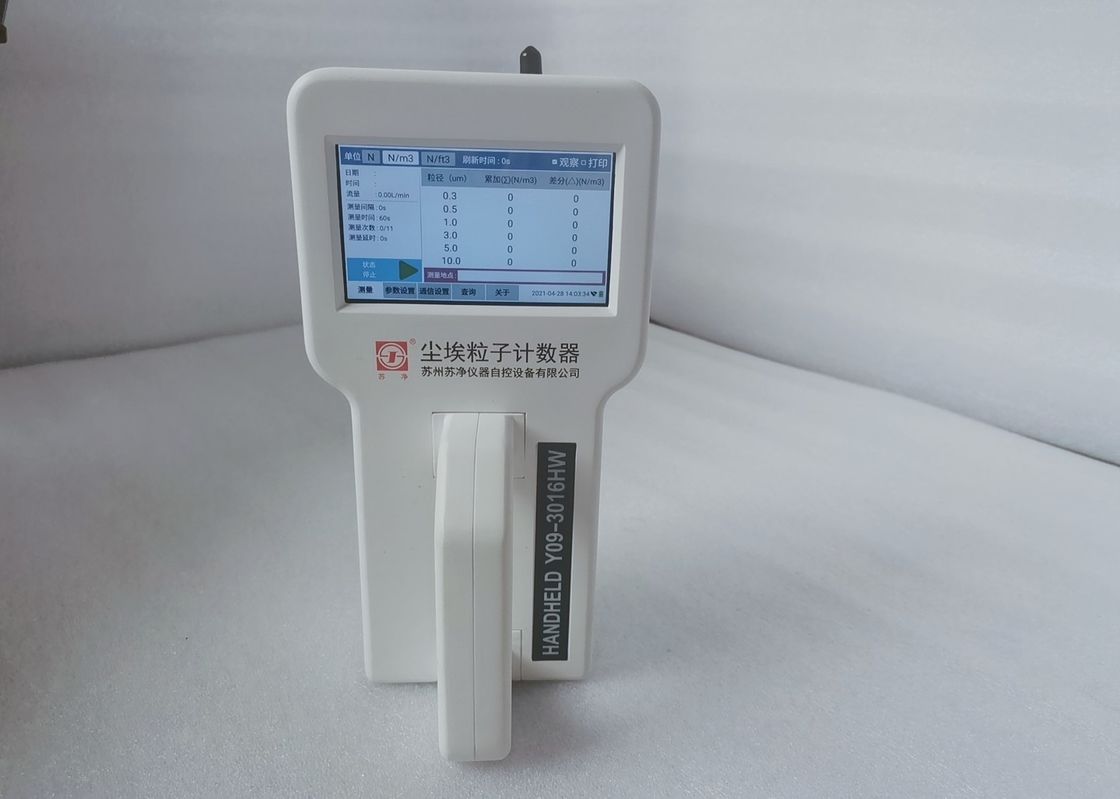

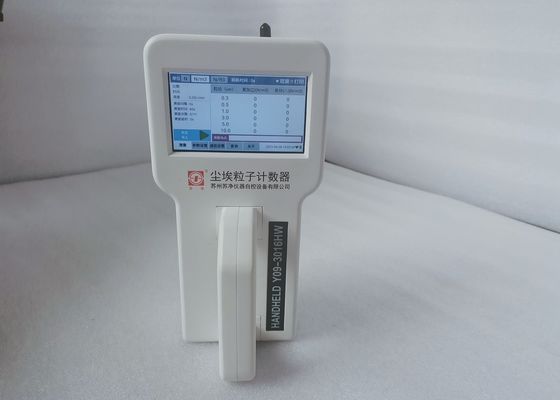

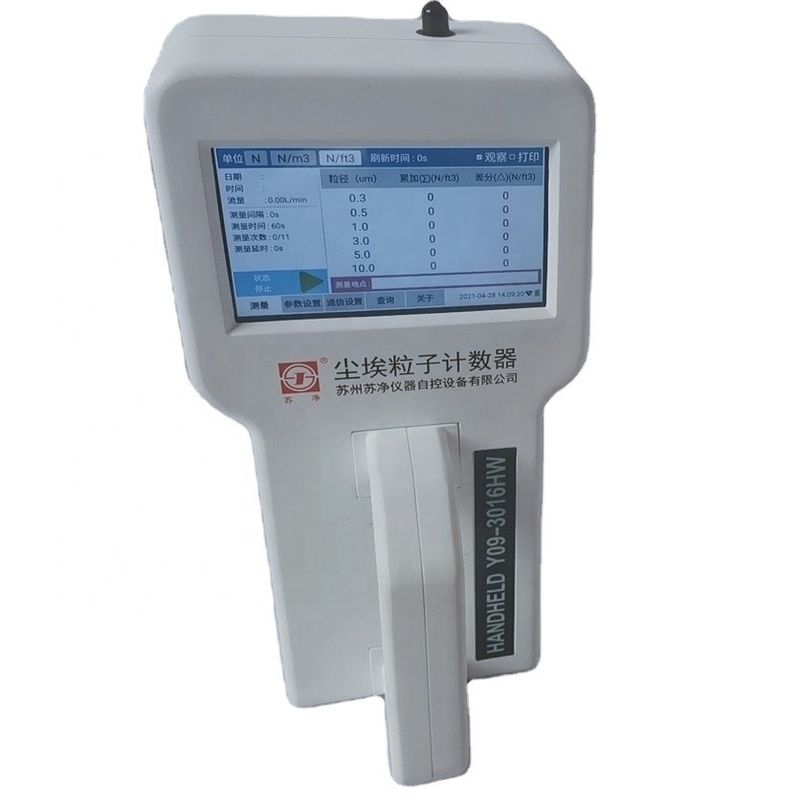

Y09-3016HW 4.3inch Touch Screen Dust Airborne Particle Counter
Y09-3016HW 4.3inch Touch Screen Dust Airborne Particle Counter is our newly develop portable laser dust particles counter which apply semiconductor laser sensor, can be connected to PC data collection system to remote control, so that can directly observe the testing situation, and the testing data can be analysis, processed and saved as Excel document. The technical index can meet the verification regulation JJG547-88 issued by DGS.
The counter apply imported micro-computer controlling and dealing technology, semi-conductor technology and imported air pump, with the character of multi-function, high precision measure, high speed, portable and easy to operate. The counter one time sampling can test the number of dust particles on different kinds of grain sizes.
The specification of Y09-310HW particle counter
Outside Dim | 245*128*66 mm3 |
Display | 4.3inch Touch Screen |
Weight | 1kg |
Power Source | DC16.8V |
Size Channels | 0.3, 0.5, 1, 3, 5, 10 μm |
Flow Rate | 2.83L/min |
Sample Time | 1s-99h |
Cycles | 0-99 |
Hold Time | 0-999sec |
Delay Time | 0-99sec |
Light source | Laser Diode |
Zero Court | <=10min |
Class | ISO14644-1:2015/GMP:2015 |
Coincidence Loss | 5%,2000000ps/cf |
Operating Time | more than 4hours |
Location Labels | 0-999 |
Data Storage | 100000 Samples (Wifi) |
Environmental | 10degrees celsius-40degrees celsius ; Humidity: 20%-90% RH ;Atmosphere Pressure 86Kpa-106Kpa |
Suzhou Sujing Automation Instrument Equipment Co., Ltd. (herein after referred to as Sujing Instrument) is boasting the largest market share in the particle measurement field in China, with complete integration of scientific research, development and production.
Sujing Instrument is one subsidiary company of Sujing Group.(Sujing Group has 11 subsidiary companies)
Sujing brand has been granted the honor of "China Famous Brand" since 1983. Sujing Group has been keeping the first place among competitors in the same industry for 35 years in a row.
The mission of Sujing Instrument is to provide products and services accociated with particle measurement and monitoring, which are application driven.
Sujing instrument is an ISO 9001:2015 Registered Company
