Name: | FLY Air Capture Hood For GMP Cleanroom Analytical Instrument | Usage Temperature: | 0 ~ +60 °C |
---|---|---|---|
Printer: | A Portable Wireless Bluetooth Printer | Usage Environment: | Neutral Gas |
Power Supply: | Rechargeable Lithium Battery7.4V,2AH | Warranty Time: | 1 Year |
High Light: | GMP Air Capture Hood,7.4V Air Capture Hood,0.01Pa Air Capture Hood |

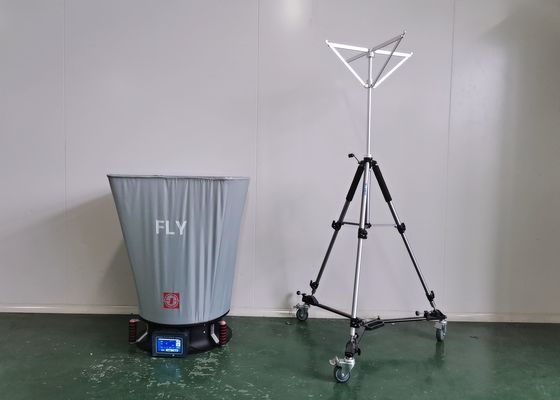

FLY Air Capture Hood For GMP Cleanroom Analytical Instrument
Air Capture Hood adopts the pitot principle. It can measure automatically the multi-spots to the wind pressure in many times. Its average amount of wind is correct, fast and simple. It is widely used in mensurating the in-out wind of the air-conditioning and the purification technologie so that the systems can be administered and their parameters are adjusted automatically. It adopts the overseas vanguard technologies of the similar products. Every product will be proofreaded strictly in testing by the multi-spot amount of wind meter before it leaving our factory, in order to providing the reliable guarantee .
Specification of airflow capture hood
Prameter | FLY-1B (W Sensor) | FLY-1 (L Sensor) | ||
Air Volume | Range |
Supply air:80 ~ 4000 m3/h Return air:80 ~ 1000 m3/h |
Supply air:150 ~ 4000 m3/h Return air:150 ~ 900 m3/h |
|
Accuracy. | ±3% reading±10 m3/h | ±5% FS | ||
Resolution | 1 m3/h | |||
Differential Pressure | Range | -100 ~ +450 Pa | -5 ~ +125 Pa | |
Accuracy. |
0 ~ 100 Pa,1.0% FS 100 ~ 450 Pa,3.5% reading |
±1.5% FS | ||
Resolution | 0.01Pa | |||
Temperature | Range | 0 ~ +60 ℃ | ||
Accuracy. | ±2% FS | |||
Resolution | 0.1℃ | |||
Memory Apace | / | 2000 groups | ||
Configuration information of airflow capture hood
Display screen | .5 LCD touch-screen display |
Shell | ABS engineering plastic |
Power supply | Rechargeable lithium battery7.4V,2AH |
Usage environment | Neutral gas |
Usage temperature | 0 ~ +60 °C |
Operating language | English |
Printer | A portable wireless bluetooth printer |
Appearance and structure design of airflow capture hood
1. New 5-inch color touch, visual display, easy operation.
2. ABS engineering plastic shell, lightweight, easy to carry.
3. Host is removable for easily recharging.
1. Handle 2.LCD Display 3.Base 4. Bluetooth light indictor 5. Flow sensing grid 6. Sensor
7.Nozzle 8. Host bracket 9. Host 10. Temperature and humidity sensor probe
11. Support Fixing 12.Fast measure button 13. Power Switch 14. Fix Flute of air sampler
15. Support pole 16.Fabric hood 17. Frame
