Gas Tester Dust PM1 PM2.5 PM10 Portable Monitor Detector Indoor
Gas Tester Dust PM1 PM2.5 PM10 Portable Monitor Detector Indoor is a measuring instrument of laser scattering dust particles (PM1.0, PM2.5, PM10). It is mainly used for measuring the concentration of dust particles in non-explosion-proof industrial sites. The product has the characteristics of fast response, high sensitivity, good stability, English interface, easy installation and so on
The specification of air quality monitor
| Model | Y09-PM (Handheld) |
| Outside Dim | 130*220*45(Wide*High*Deep) |
| Display | LCD |
| Weight | 0.6kg |
| Maximum consumption | 10W |
| Power Source | DC8.4 V built-in Lithium Battery |
| Size channels | PM1.0 PM2.5 PM10 |
| Flow Rate | 2.83L/min (Imported Pump) |
| Sample Time | 0-999999s Selectable |
| Zero Count | <=10min |
| Location Labels | 0-999 |
| Printer | External thermal printer(optional) |
| Detection Range | 0.1-999.9μg /m3 |
| Data Storage | 1000 records |
| Light Source | Laser Diode (30000 hours mean time between failures) |
| Operating Time | 5 hours |
| Environmental | Temperature:10-40℃;Humidity:<85%RH;Atmosphere Pressure:86-106Kpa |
| Accessories | Carry case ;zero count filter; AC adapter; pc cable; pc software |

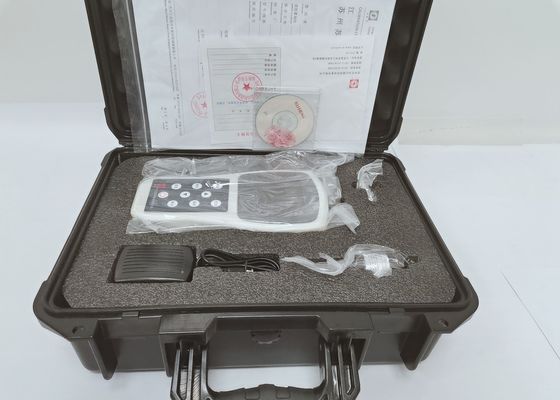

The picture of air quality monitor
