| Place of Origin: | China |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Y09-350 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Airborne Particle Counter Monitor Cleanroom Cleanliness | Size Channel: | 0.3,0.5, 1, 3, 5, 10 μm |
|---|---|---|---|
| Flow Rate: | 50LPM | Zero Count: | ≤10min |
| Maximum Rated Particle Concentration: | 35000 Particles/L | Warranty Time: | 1 Year |
| High Light: | 50LPM Flow Dust Particle Counter,50LPM Flow Laser Air Particle Counter,7inch Color Screen Dust Particle Counter |
||
Y09-350 High Quality Laser Dust Particle Counter Sensor
The portable laser particle counter simultaneously measures six channel sizes that are configurable by the user. The data is recorded in the embedded flash memory and can be downloaded with supplied software through either a USB or RS232 interface. laser particle counter is designed in the USA and is in compliance with the international standards (JISB9925:1997 and ISO14644-1) and has CE certification. it features high sensitivity, multiple functional capabilities, and is slim, lightweight and very user friendly.
Specification of air particle counter
| Model | Y09-350 |
| Outside Dim | 268×192×292(mm3) |
| Display | 7inch Color Screen |
| Weight | 8.4kg |
| Max.Consumption | 80W |
| Power Source | DC16.8V |
| Size Channels | 0.3,0.5, 1, 3, 5, 10μm |
| Flow Rate | 50L/min |
| Zero Count | ≤10min |
| Hold Time | 0-9999s |
| Delay Time | 5-999s |
| Printer | Built-in Thermal Printer |
| Data Storage | 20000 Samples/300Samples of UCL(With PC Software) |
| Maximum Rated Particle Concentration | 35000 particles/L |
| Operating Time | More than 5.5 hours |
| Material | SUS316L Stainless Steel |
| Class | ISO14644-1:2015/GMP:2015 |
| Warranty Time | 1 Year |

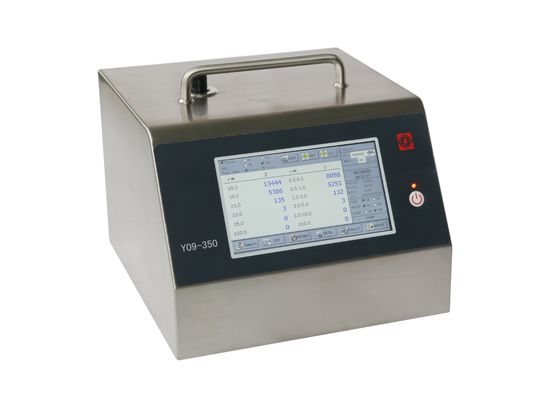

Picture of Y09-350 Laser Particle Counter
