| Place of Origin: | China |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Y09-350 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Airborne Particle Counter Y09-350 Portable 6-Channel Particle Size Airborne Particle CounterMonitor Cleanroom Cleanliness | Size Channel: | 0.3,0.5, 1, 3, 5, 10 μm |
|---|---|---|---|
| Flow Rate: | 50LPM | Zero Count: | ≤10min |
| Maximum Rated Particle Concentration: | 35000 Particles/L | Warranty Time: | 1 Year |
| High Light: | 50LPM Portable Airborne Particle Counter,6 Channel Airborne Particle Counter,50L/min Airborne Particle Counter |
||
Y09-350 Portable 6-Channel Particle Size Airborne Particle Counter
Y09-350 laser dust particle counter (50L/min) is used to measure and analyze the size and quantity of dust particles in a unit volume of air in a clean environment, and is a testing instrument to determine the cleanliness level of the clean environment according to the standard. Dust particle counters are widely used in clean workshop inspections in enterprises such as medicine and hygiene, optics, chemistry, food, cosmetics, electronics, biological products, aerospace and so on.
The portable laser particle counter simultaneously measures six channel sizes that are configurable by the user. The data is recorded in the embedded flash memory and can be downloaded with supplied software through either a USB or RS232 interface. laser particle counter is designed in the USA and is in compliance with the international standards (JISB9925:1997 and ISO14644-1) and has CE certification. it features high sensitivity, multiple functional capabilities, and is slim, lightweight and very user friendly.
Specification of air particle counter
| Model | Y09-350 |
| Outside Dim | 268×192×292(mm3) |
| Display | 7inch Color Screen |
| Weight | 8.4kg |
| Max.Consumption | 80W |
| Power Source | DC16.8V |
| Size Channels | 0.3,0.5, 1, 3, 5, 10μm |
| Flow Rate | 50L/min |
| Zero Count | ≤10min |
| Hold Time | 0-9999s |
| Delay Time | 5-999s |
| Printer | Built-in Thermal Printer |
| Data Storage | 20000 Samples/300Samples of UCL(With PC Software) |
| Maximum Rated Particle Concentration | 35000 particles/L |
| Operating Time | More than 5.5 hours |
| Material | SUS316L Stainless Steel |
| Class | ISO14644-1:2015/GMP:2015 |
| Warranty Time | 1 Year |

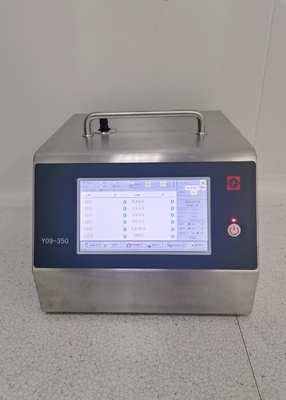

Picture of Y09-350 Laser Particle Counter
