| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | Y09-3016HW |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Y09-3016HW Dust Handheld Particle Counter In Cleanroom | Size Channel: | 0.3, 0.5, 1, 3, 5, 10 μm |
|---|---|---|---|
| Flow Rate: | 0.1cfm | Light Source: | Laser Diode |
| Warranty Time: | 1 Year | Weight: | 1kg |
| High Light: | Cleanroom Dust Particle Counter,Dust Handheld Particle Counter,Cleanroom Handheld Particle Counter |
||

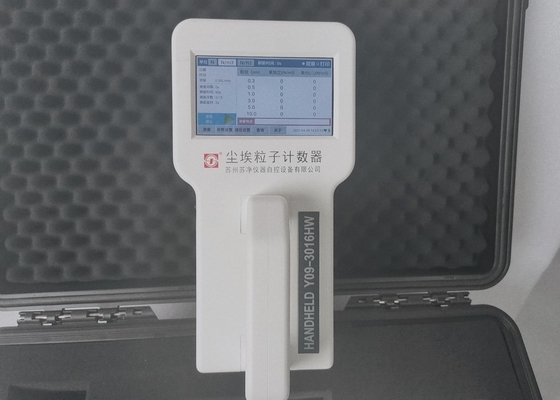

Y09-3016HW Dust Handheld Particle Counter In Cleanroom
The specification of Y09-310HW air particle counter
| Outside Dim | 245*128*66 mm3 |
| Display | 4.3inch Touch Screen |
| Weight | 1kg |
| Power Source | DC16.8V |
| Size Channels | 0.3, 0.5, 1, 3, 5, 10 μm |
| Flow Rate | 2.83L/min |
| Sample Time | 1s-99h |
| Cycles | 0-99 |
| Hold Time | 0-999sec |
| Delay Time | 0-99sec |
| Light source | Laser Diode |
| Zero Court | <=10min |
| Class | ISO14644-1:2015/GMP:2015 |
| Coincidence Loss | 5%,2000000ps/cf |
| Operating Time | more than 4hours |
| Location Labels | 0-999 |
| Data Storage | 100000 Samples (Wifi) |
| Environmental | 10degrees celsius-40degrees celsius ; Humidity: 20%-90% RH ;Atmosphere Pressure 86Kpa-106Kpa |
The sensors used in handheld air quality detector mainly consist of gas circuit system, optical system and data processing system, etc and integrates aerodynamics, digital signal processing and optical, mechanical and electronic to detect the particle quantity of all sizes in air of certain volume quickly and convert to weight calculation data immediately. It has the characteristics of high detection precision, stable performance, strong multiple-function, easy operation and carrying and detection at any time at any place.
Y09-3016HW Handheld Air Particle Counter is ergonomically designed to fit in the palm of your hand.The counter is very rugged and offers true portability while retaining the features and sensitivity of larger particle counters.
Now it is easy to carry a particle counter right to the point of interest and obtain accurate results–results you can immediately print or store to computer. The large color LCD display lets you see the data easily and err-free.
The Feature of Y09-310HW air particle counter
1. Simultaneously sizes and counts particles in six fixed channels
2. Size sensitivities with 0.3μm,0.5μm,1μm,3μm,5μm,10μm 3.0.1CFM(2.83L/min) sample flow rate
4. 4.3 inch color touch screen display 5.External printer optional 6.One year warranty Company Information
Suzhou Sujing Automation Instrument Equipment Co., Ltd. (herein after referred to as Sujing Instrument) is boasting the largest market share in the particle measurement field in China, with complete integration of scientific research, development and production.
Sujing Instrument is one subsidiary company of Sujing Group.(Sujing Group has 11 subsidiary companies)
Sujing brand has been granted the honor of "China Famous Brand" since 1983. Sujing Group has been keeping the first place among competitors in the same industry for 35 years in a row.
The mission of Sujing Instrument is to provide products and services accociated with particle measurement and monitoring, which are application driven.
Sujing instrument is an ISO 9001:2015 Registered Company
1. Research
2. Material
3. Produce
4. Calibration
5. Testing
5. Packing
