Handheld Air Dust Particle Counter In Cleanroom Y09-3016 0.1cfm

Basic Information
Place of Origin: China
Brand Name: SUJING
Model Number: Y09-3016
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Name: Y09-3016 0.1cfm Handheld Air Dust Particle Counter In Cleanroom Size Channel: 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate: 0.1CFM Alarm: ISO14644-1:2015/GMP:2015
Warranty Time: 1 Year Environmental: 10degrees Celsius-30degrees Celsius ; Humidity: 20%-75% RH ;Atmosphere Pressure 86Kpa-106Kpa
High Light:

Cleanroom Dust Particle Counter

,

Handheld Dust Particle Counter

,

Dust Particle Counter 2.83L/min


Product Description

Y09-3016 0.1cfm Handheld Air Dust Particle Counter In Cleanroom



The dust particle counter has a built-in long-life laser diode, a light-collecting elliptical lens, and a unique optical system to provide a concentration measurement range. The dust particle counter has a built-in vacuum pump, a constant velocity sampling head, a micro-processing circuit, a computer interface, and all information is displayed on the touch screen.



The parameter of air particle counter

Model Y09-3016
Outside Dim 300*360*126 mm3(Wide*Deep*High)
Display LCD
Weight 0.7kg
Battery (Lithium Ion Battery),7.2V,2200mAh
Power Source Li-ion charger ,8.4V DC,1A:9-250V AC, 50-60Hz
Size Channels 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate 2.83L/min
Sample Time 1s-99h
Cycles 0-99
Hold Time 0-999sec
Delay Time 0-99sec
Light source Laser Diode
Zero Court <=10min
Alarm ISO14644-1:2015/GMP:2015
Coincidence Loss 5%,2000000ps/cf
Operating Time more than 5.5 hours
output RS-232 to pc or printer via optional cable
Location Labels 0-999
Data Storage 1000 Samples (With PC Software)
Environmental 10degrees celsius-30degrees celsius ; Humidity: 20%-75% RH ;Atmosphere Pressure 86Kpa-106Kpa
Standard feathure suitcase ;charger;sampling head;line of communication;communication software ;Automatic Purifier
Optional component External printer



Features of Y09-3016 0.1cfm Handheld Air Dust Particle Counter In Cleanroom

  • 0.3 - 25 μm
  • 0.1 CFM (2.83LPM) Flow Rate
  • View 6 Particle Sizes Simultaneously
  • Designed for ISO 21501-4 Compliance: Unit-to-Unit Accuracy and Repeatability
  • Bright 3.5" (8.89 cm) Color Touch Screen Display
  • Removable / Rechargeable Li-Ion Battery
  • Large Memory for Storing Data (1000 Samples)
  • Temperature / Relative Humidity Probe Included
  • Internal Audible Alarm
  • Lightweight

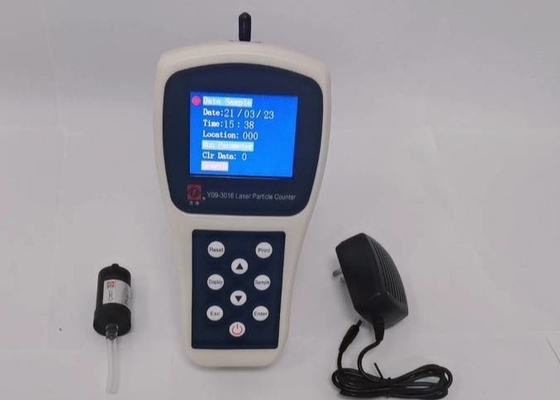

The picture of Y09-3016 0.1cfm Handheld Air Dust Particle Counter In Cleanroom

Handheld Air Dust Particle Counter In Cleanroom Y09-3016 0.1cfm 0
