Laser Dust Particle Counter Built In Lithium Battery Y09-550

Certification
China Suzhou Sujing Automation Equipment corporation limited certification
China Suzhou Sujing Automation Equipment corporation limited certification
I'm Online Chat Now

Laser Dust Particle Counter Built In Lithium Battery Y09-550

Laser Dust Particle Counter Built In Lithium Battery Y09-550
Laser Dust Particle Counter Built In Lithium Battery Y09-550

Large Image :  Laser Dust Particle Counter Built In Lithium Battery Y09-550

Product Details:
Place of Origin: China
Brand Name: Sujing
Model Number: Y09-550
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detailed Product Description
Name: Y09-550 Laser Sensor Air Portable Laser Particle Counter 50LPM Flow Rate: 100LPM
Warranty Time: 1 Year Weight: 8.4kg
Operating Time: More Than 5.5 Hours Maximum Rated Particle Concentration: 35000 Particles/L
High Light:

Lithium Battery Dust Particle Counter

,

Dust Laser Particle Counter

,

Lithium Battery Laser Particle Counter

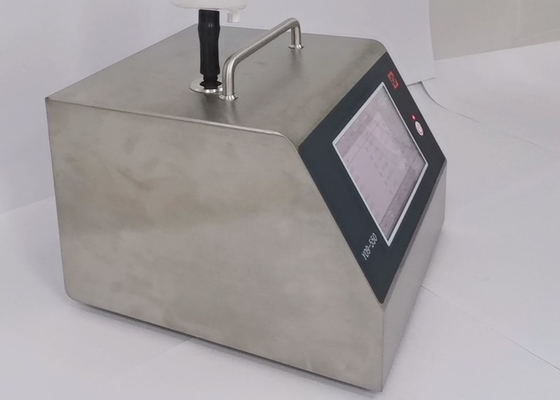

Y09-550 Laser Dust Particle Counter built-in lithium battery

Y09-550 Laser Dust Particle Counter  is a portable device with built-in lithium battery. As the particle count, the 0.3, 0.5 and1,3,5,10 um channel particle data can be displayed in real time, and the cumulative particle number of six channels can be displayed after a sampling period. The dust particle counter has built-in long-life laser diode, light collection elliptical lens and unique optical system to provide concentration measurement range. The dust particle counter has built-in 16.8V lithium-ion battery pack, vacuum pump, isokinetic sampling head, micro processing circuit and computer interface. All information is displayed on the 7 inch touch screen.





Specification of particle counter

Model

Y09-5100

Laser Dust Particle Counter Built In Lithium Battery Y09-550 0

Y09-550

Laser Dust Particle Counter Built In Lithium Battery Y09-550 1

Y09-350Laser Dust Particle Counter Built In Lithium Battery Y09-550 2
Outside Dim 268×295×192(mm3)
Display 7inch Color Screen
Weight 8.4kg
Max.Consumption 80W
Power Source DC16.8V
Size Channels 0.5, 1, 3, 5, 10, 25μm 0.3,0.5,1,3,5,10μm
Flow Rate 100L/min 50L/min
Sample Time 6~999999s(Selectable)
Zero Count ≤10min
Hold Time 0-9999s
Delay Time 5-999s
Printer Built-in Thermal Printer
Data Storage 20000 Samples/300Samples of UCL(With PC Software)
Maximum Rated Particle Concentration 35000 particles/L
Operating Time 3 hours 5 hours
Environmental Temperature:10~35; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa
Material SUS316L Stainless Steel
Class ISO14644-1:2015/GMP:2015









Laser Dust Particle Counter Built In Lithium Battery Y09-550 3

Related products

Model

Y09-110

Y09-310NW

Y09-3016HW






Laser Dust Particle Counter Built In Lithium Battery Y09-550 4





Laser Dust Particle Counter Built In Lithium Battery Y09-550 5



Laser Dust Particle Counter Built In Lithium Battery Y09-550 6



Size Channels 0.1,0.2,0.3,0.5,0.7,1.0μm 0.3,0.5,1,3,5,10μm
Flow Rate 28.3L/min 2.83L/min
Display 7inch Color Screen 4.3inch Color Screen





Laser Dust Particle Counter Built In Lithium Battery Y09-550 7

Suzhou Sujing Automation Instrument Equipment Co., Ltd. (herein after referred to as Sujing Instrument) is boasting the largest market share in the particle measurement field in China, with complete integration of scientific research, development and production.

Sujing Instrument is one subsidiary company of Sujing Group.(Sujing Group has 11 subsidiary companies)

Sujing brand has been granted the honor of "China Famous Brand" since 1983. Sujing Group has been keeping the first place among competitors in the same industry for 35 years in a row.
The mission of Sujing Instrument is to provide products and services accociated with particle measurement and monitoring, which are application driven.





Sujing instrument is an ISO 9001:2015 Registered Company
