| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | Y09-550 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Y09-550 Laser Sensor Air Portable Laser Particle Counter 50LPM | Flow Rate: | 100LPM |
|---|---|---|---|
| Warranty Time: | 1 Year | Weight: | 8.4kg |
| Operating Time: | More Than 5.5 Hours | Maximum Rated Particle Concentration: | 35000 Particles/L |
| Highlight: | Laser Air Particle Counter 50lpm,Cleanroom Monitoring Air Particle Counter,Laser Air Particle Counter 100lpm |
||

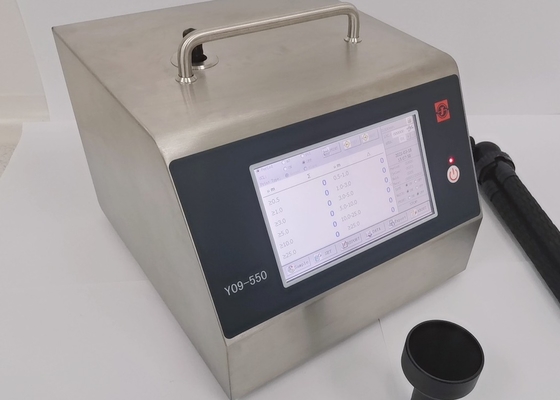

50lpm And 100lpm Laser Dust Air Particle Counter In Cleanroom
The dirt particles in the air have the function to scatter the incident light. The density of scattered light is related to grain size. The air containing dirt particles is sucked in from sampling port of the sensors. When it passes through the photoactive area, the dirt particles are shined by the light to scatter optical pulses signal with certain proportion to particle size. The signal is received by photosensor and is converted to corresponding electric pulse signal and then is amplified. By counting the electric pulse in one detection cycle, the quantity of dirt particles in the detected air with unit volume is obtained. This is also the particle concentration.
Application of particle counter
• Cleanroom Monitoring
• Facility Certification
• Facility Monitoring
• Filter Testing
• Cleanroom Laundries
• Cleanroom Packing
• Aerospace
• Hospital Surgical Rooms
• Pharmaceutical
• Paint Spray Booths
•Food Processing Area
•Hard Disk Drive Manufacturing
Specification of particle counter
| Model |
Y09-5100
|
Y09-550
|
Y09-350 |
| Outside Dim | 268×295×192(mm3) | ||
| Display | 7inch Color Screen | ||
| Weight | 8.4kg | ||
| Max.Consumption | 80W | ||
| Power Source | DC16.8V | ||
| Size Channels | 0.5, 1, 3, 5, 10, 25μm | 0.3,0.5,1,3,5,10μm | |
| Flow Rate | 100L/min | 50L/min | |
| Sample Time | 6~999999s(Selectable) | ||
| Zero Count | ≤10min | ||
| Hold Time | 0-9999s | ||
| Delay Time | 5-999s | ||
| Printer | Built-in Thermal Printer | ||
| Data Storage | 20000 Samples/300Samples of UCL(With PC Software) | ||
| Maximum Rated Particle Concentration | 35000 particles/L | ||
| Operating Time | 3 hours | 5 hours | |
| Environmental | Temperature:10~35℃; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa | ||
| Material | SUS316L Stainless Steel | ||
| Class | ISO14644-1:2015/GMP:2015 | ||
Related products
|
Model |
Y09-110 |
Y09-310NW |
Y09-3016HW |
|
Picture |
|
|
|
| Size Channels | 0.1,0.2,0.3,0.5,0.7,1.0μm | 0.3,0.5,1,3,5,10μm | |
| Flow Rate | 28.3L/min | 2.83L/min | |
| Display | 7inch Color Screen | 4.3inch Color Screen | |
