Laser Dust Air Particle Counter For Cleanroom Monitoring 50lpm

Certification
China Suzhou Sujing Automation Equipment corporation limited certification
China Suzhou Sujing Automation Equipment corporation limited certification
I'm Online Chat Now

Laser Dust Air Particle Counter For Cleanroom Monitoring 50lpm

Laser Dust Air Particle Counter For Cleanroom Monitoring 50lpm
Laser Dust Air Particle Counter For Cleanroom Monitoring 50lpm

Large Image :  Laser Dust Air Particle Counter For Cleanroom Monitoring 50lpm

Product Details:
Place of Origin: China
Brand Name: Sujing

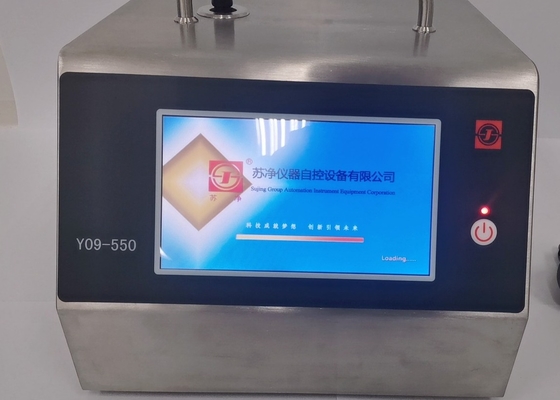

Model Number: Y09-550
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detailed Product Description
Name: Y09-550 Laser Sensor Air Portable Laser Particle Counter 50LPM Flow Rate: 100LPM
Warranty Time: 1 Year Weight: 8.4kg
Operating Time: More Than 5.5 Hours Maximum Rated Particle Concentration: 35000 Particles/L
High Light:

50lpm Dust Particle Counter

,

Cleanroom Monitoring Dust Particle Counter

,

Cleanroom Monitoring Laser Air Particle Counter

50lpm Laser Dust Air Particle Counter For Cleanroom Monitoring

The Y09-550 particle counter uses a laser light source and collection optics for particle detection. Particles scatter light from the light source in the direction of the collection optics. The collection optics focuses the light on a photoelectric cell that converts the bursts of light into electrical pulses. The pulse height is a measure of particle size. Pulses are counted and their intensity is measured for particle sizing. Results are displayed as particle count in the specified size channel.



Application of particle counter



• Cleanroom Monitoring

• Facility Certification

• Facility Monitoring

• Filter Testing

• Cleanroom Laundries

• Cleanroom Packing

• Aerospace

• Hospital Surgical Rooms

• Pharmaceutical

• Paint Spray Booths

•Food Processing Area

•Hard Disk Drive Manufacturing



Specification of particle counter

Model

Y09-5100

Laser Dust Air Particle Counter For Cleanroom Monitoring 50lpm 0

Y09-550

Laser Dust Air Particle Counter For Cleanroom Monitoring 50lpm 1

Y09-350Laser Dust Air Particle Counter For Cleanroom Monitoring 50lpm 2
Outside Dim 268×295×192(mm3)
Display 7inch Color Screen
Weight 8.4kg
Max.Consumption 80W
Power Source DC16.8V
Size Channels 0.5, 1, 3, 5, 10, 25μm 0.3,0.5,1,3,5,10μm
Flow Rate 100L/min 50L/min
Sample Time 6~999999s(Selectable)
Zero Count ≤10min
Hold Time 0-9999s
Delay Time 5-999s
Printer Built-in Thermal Printer
Data Storage 20000 Samples/300Samples of UCL(With PC Software)
Maximum Rated Particle Concentration 35000 particles/L
Operating Time 3 hours 5 hours
Environmental Temperature:10~35; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa
Material SUS316L Stainless Steel
Class ISO14644-1:2015/GMP:2015









Laser Dust Air Particle Counter For Cleanroom Monitoring 50lpm 3

Related products

Model

Y09-110

Y09-310NW

Y09-3016HW






Laser Dust Air Particle Counter For Cleanroom Monitoring 50lpm 4





Laser Dust Air Particle Counter For Cleanroom Monitoring 50lpm 5



Laser Dust Air Particle Counter For Cleanroom Monitoring 50lpm 6



Size Channels 0.1,0.2,0.3,0.5,0.7,1.0μm 0.3,0.5,1,3,5,10μm
Flow Rate 28.3L/min 2.83L/min
Display 7inch Color Screen 4.3inch Color Screen





Laser Dust Air Particle Counter For Cleanroom Monitoring 50lpm 7

Suzhou Sujing Automation Instrument Equipment Co., Ltd. (herein after referred to as Sujing Instrument) is boasting the largest market share in the particle measurement field in China, with complete integration of scientific research, development and production.

Sujing Instrument is one subsidiary company of Sujing Group.(Sujing Group has 11 subsidiary companies)

Sujing brand has been granted the honor of "China Famous Brand" since 1983. Sujing Group has been keeping the first place among competitors in the same industry for 35 years in a row.
The mission of Sujing Instrument is to provide products and services accociated with particle measurement and monitoring, which are application driven.





Sujing instrument is an ISO 9001:2015 Registered Company
