USB Interface Laser Air Particle Counter For Cleanroom Y09-310X

USB Interface Laser Air Particle Counter For Cleanroom Y09-310X
USB Interface Laser Air Particle Counter For Cleanroom Y09-310X

Large Image :  USB Interface Laser Air Particle Counter For Cleanroom Y09-310X

Product Details:
Place of Origin: China
Brand Name: SUJING
Model Number: Y09-310X
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detailed Product Description
Name: Y09-310X Laser Particle Counter Air Particle Counter For Cleanroom Size Channels: 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate: 28.3L/min (Imported Pump) Operating Time: 6 Hours
Zero Count: ≤10min Interface: USB
High Light:

USB Laser Air Particle Counter

,

28.3L/min Laser Air Particle Counter

,

USB Interface Air Particle Counter

Y09-310X Laser Particle Counter Air Particle Counter For Cleanroom



Y09-310X

1CFM (28.3LPM)- Airborne Particle Counter

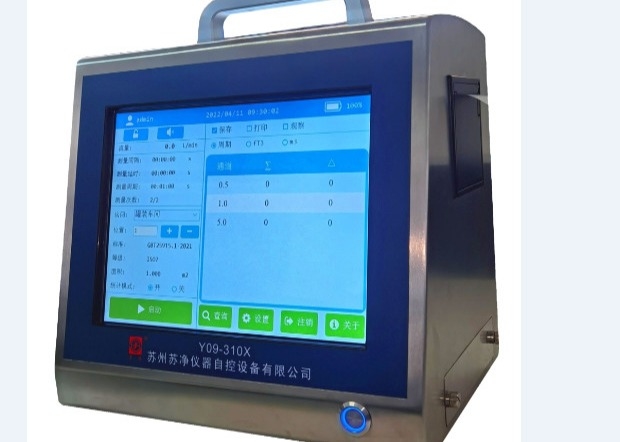

Y09-310X laser dust particle counter is an upgraded product of Y09-310NW. Compared with similar products, it is smaller in size and more compact in structure. It is used to measure the size and number of dust particles in a unit volume of air in the air environment, and can directly detect clean environments with cleanliness levels ranging from 300,000 to 10. It is a new generation of products developed to adapt to new national policies and new orientations .



The instrument adopts semiconductor laser light source, touch screen (liquid crystal screen) display, reasonable structure, high detection accuracy, large flow, short sampling time, simple and clear function operation, no need for computer data acquisition, can be directly stored in storage media such as U disk, or computer Control, can store, print sampling results, built-in thermal micro-printer, the test environment is very convenient.



It is Widely used in electronics, optics, chemistry, food, cosmetics, medicine and health, biological products, aerospace and other departments.



Standards compliant

  • GB/T 25915.1-2021 (clean room and related controlled environment)
  • GB/T 29024.4-2017/ISO 20501-4:2007(Particle Size Analysis Optical Measurement of Single Particles)
  • ISO 14644-1:2015 (Cleanrooms and Associated Controlled Environments)
  • GB/T 16292-2010 (Test method for suspended particles in clean room (area) of pharmaceutical industry)
  • 21 CFR part 11





Features

  1. Simple, lightweight, easy to operate, easy to clean

• 10'' high resolution LCD touch screen for easy gloved operation.

• Stainless steel housing, airtight design, direct cleaning.



  1. Simplified, secure data management for easy auditing

• Traceability: Microsoft Active Directory usernames and passwords for multiple levels of control,Create a unique electronic signature for the user.

• Clear records: Export clear, secure PDF electronic records of measurement results.

• Save Write Synchronization: Create secure PDF electronic records within the counter - no data

Manual transcription or scanning of paper reports.

• Raw Data Consistency: Create raw electronic records directly within the counter.





Outside Dim 213mm*292mm*276mm (L*W*H)
Weight 7.2Kg
Max. Consumption 60W
Power Source DC16.8V built-in Lithium Battery; AC 220V ± 10%
Size Channels 0.3, 0.5, 1, 3, 5, 10 μm
Calculation 95% UCL calculation, can display and print particle concentration (particles / cubic meter, particles /cubic feet)
Flow Rate 28.3L/min (Imported Pump)
Sample Time 1s---999999s (Selectable)
Data Storage 100000Samples
Maximum Rated Particle Concentration 35000 particles/L
Operating Time 6 hours
Environmental Temperature Temperature :10 -35; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa
Zero Count ≤10min
Interface USB






Application



Cleanroom Monitoring

• Facility Certification

• Facility Monitoring

• Filter Testing

• Cleanroom Laundries

• Cleanroom Packing

• Aerospace

• Hospital Surgical Rooms

• Pharmaceutical

• Paint Spray Booths

•Food Processing Area

•Hard Disk Drive Manufacturing
