Laser Particle Counter In Cleanroom Of Pharma Factory

Basic Information
Place of Origin: China
Brand Name: Sujing
Model Number: Y09-3016HW
Minimum Order Quantity: 1
Price: EXWUSD4000/unit
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Name: Laser Particle Counter In Cleanroom Of Pharma Factory Size Channel: 0.3, 0.5, 1, 3, 5, 10 μm
Display: 4.3inch Touch Screen Flow Rate: 28.3LPM
Warranty Time: 1 Year Weight: 1kg
High Light:

Cleanroom Laser Particle Counter

,

4.3'' Laser Air Particle Counter

,

4.3'' Touch Screen Laser Particle Counter


Product Description

Laser Particle Counter In cleanroom of Pharma Factory​



The particle counter is for everyday use in environmental measurements, factories and offices to detect the concentration of dust particles to which workers are subjected. Such a particle counter is also used in industrial research and development or in clean rooms. The particle counter is able to aspirate air in order to check the amount of particles. The Particle Counter measures the concentration of diverse particles in air such as dust, soot, pollen and other aerosol types. It has been designed to detect the exact pollution level in the air. Pollution is usually generated by combustion, material process, manufacturing, energy generation, vehicle emissions and in the building industry.

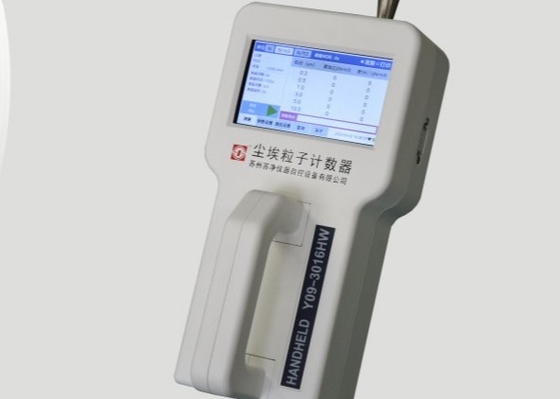

Laser Particle Counter In Cleanroom Of Pharma Factory 0



The specification of Y09-3016HW air particle counter

Outside Dim 245*128*66 mm3
Display 4.3inch Touch Screen
Weight 1kg
Power Source DC16.8V
Size Channels 0.3, 0.5, 1, 3, 5, 10 μm
Flow Rate 2.83L/min
Sample Time 1s-99h
Cycles 0-99
Hold Time 0-999sec
Delay Time 0-99sec
Light source Laser Diode
Zero Court <=10min
Class ISO14644-1:2015/GMP:2015
Coincidence Loss 5%,2000000ps/cf
Operating Time more than 4hours
Location Labels 0-999
Data Storage 100000 Samples (Wifi)
Environmental 10degrees celsius-40degrees celsius ; Humidity: 20%-90% RH ;Atmosphere Pressure 86Kpa-106Kpa



The Feature of Y09-3016HW air particle counter

1. Simultaneously sizes and counts particles in six fixed channels

2. Size sensitivities with 0.3μm,0.5μm,1μm,3μm,5μm,10μm

3. 0.1CFM(2.83L/min) sample flow rate

4. 4.3 inch color touch screen display

5. External printer optional 6.One year warranty Company Information
