| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | Y09-550 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Dust Particle Counter In Cleanroom 50lpm And 100lpm | Flow Rate: | 100LPM |
|---|---|---|---|
| Warranty Time: | 1 Year | Weight: | 8.4kg |
| Operating Time: | More Than 5.5 Hours | Maximum Rated Particle Concentration: | 35000 Particles/L |
| High Light: | Dust Particle Counter 50lpm,7 Inch Color Screen Particle Counter,100 Lpm Dust Particle Counter |
||

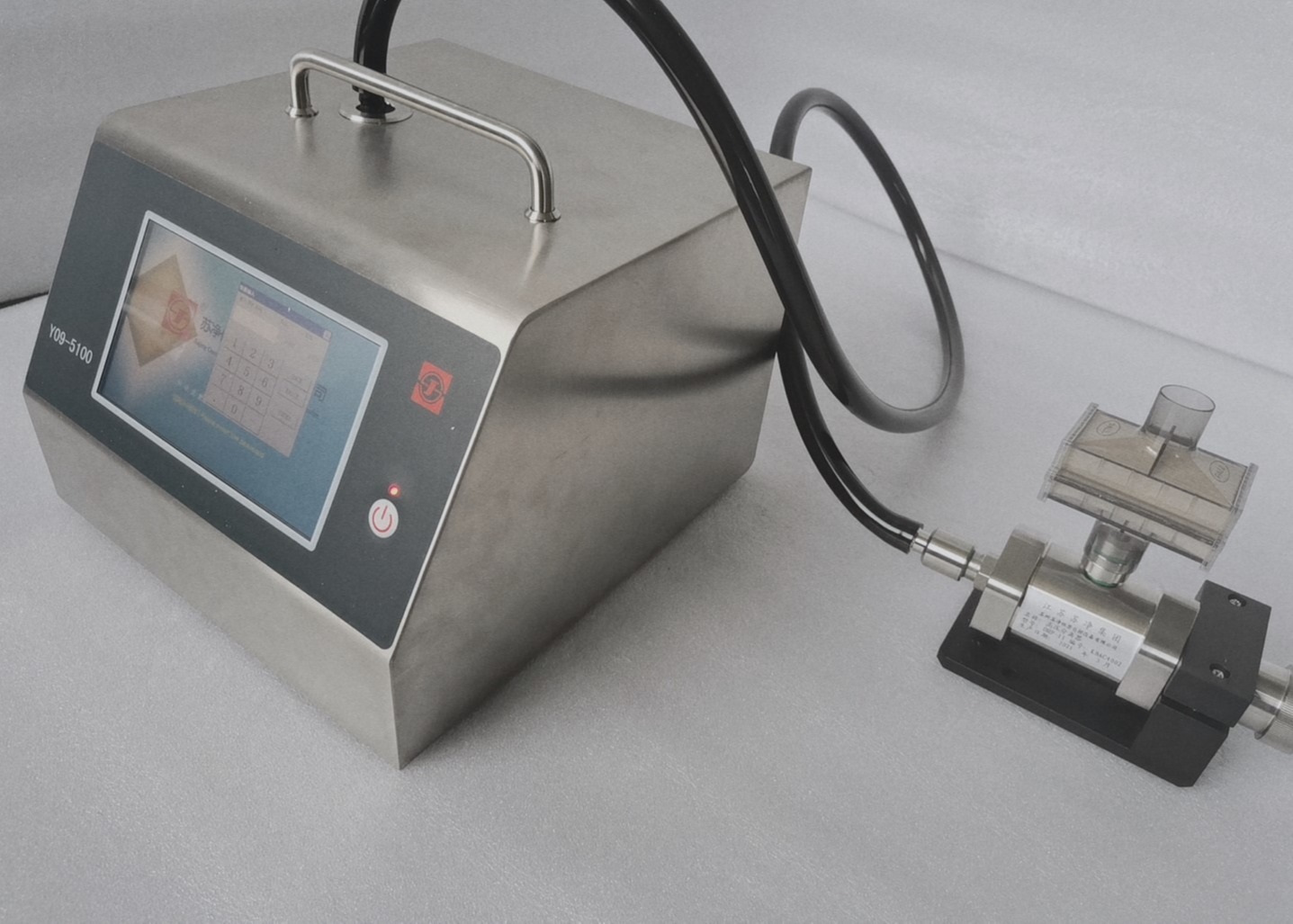

Dust Particle Counter In Cleanroom 50lpm And 100lpm
SUJING offers a complete line of Portable Particle Counters. The 100 LPM version allows you to sample 1 m3 of air in just 10 minutes, shortening the time needed to perform classifications. Professional certifiers prefer easy icon-driven touch screen interface when measured against comparable products.
Application of particle counter
• Cleanroom Monitoring
• Facility Certification
• Facility Monitoring
• Filter Testing
• Cleanroom Laundries
• Cleanroom Packing
• Aerospace
• Hospital Surgical Rooms
• Pharmaceutical
• Paint Spray Booths
•Food Processing Area
•Hard Disk Drive Manufacturing
Specification of particle counter
| Model |
Y09-5100
|
Y09-550
|
Y09-350 |
| Outside Dim | 268×295×192(mm3) | ||
| Display | 7inch Color Screen | ||
| Weight | 8.4kg | ||
| Max.Consumption | 80W | ||
| Power Source | DC16.8V | ||
| Size Channels | 0.5, 1, 3, 5, 10, 25μm | 0.3,0.5,1,3,5,10μm | |
| Flow Rate | 100L/min | 50L/min | |
| Sample Time | 6~999999s(Selectable) | ||
| Zero Count | ≤10min | ||
| Hold Time | 0-9999s | ||
| Delay Time | 5-999s | ||
| Printer | Built-in Thermal Printer | ||
| Data Storage | 20000 Samples/300Samples of UCL(With PC Software) | ||
| Maximum Rated Particle Concentration | 35000 particles/L | ||
| Operating Time | 3 hours | 5 hours | |
| Environmental | Temperature:10~35℃; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa | ||
| Material | SUS316L Stainless Steel | ||
| Class | ISO14644-1:2015/GMP:2015 | ||
Related products
|
Model |
Y09-110 |
Y09-310NW |
Y09-3016HW |
|
Picture |
|
|
|
| Size Channels | 0.1,0.2,0.3,0.5,0.7,1.0μm | 0.3,0.5,1,3,5,10μm | |
| Flow Rate | 28.3L/min | 2.83L/min | |
| Display | 7inch Color Screen | 4.3inch Color Screen | |
