| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | Y09-550 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Light Scattering Airborne Particle Counter In Cleanroom | Flow Rate: | 100LPM |
|---|---|---|---|
| Warranty Time: | 1 Year | Weight: | 8.4kg |
| Operating Time: | More Than 5.5 Hours | Maximum Rated Particle Concentration: | 35000 Particles/L |
| High Light: | Light Scattering Airborne Particle Counter,100LPM Airborne Particle Counter,Airborne Particle Counter SUS316L |
||

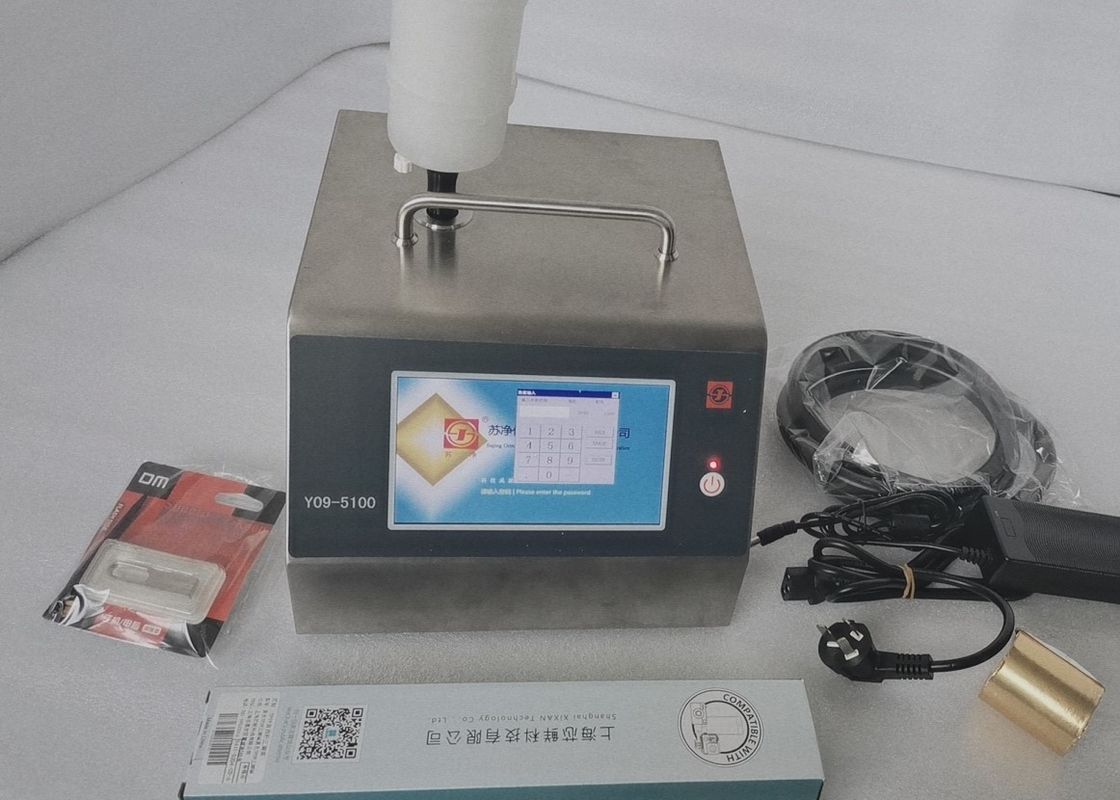

Light Scattering Airborne Particle Counter In Cleanroom
Light Scattering Airborne Particle Counter In Cleanroom is our newly develop portable laser dust particles counter which apply semiconductor laser sensor, can be connected to PC data collection system to remote control, so that can directly observe the testing situation, and the testing data can be analysis, processed and saved as Excel document. The technical index can meet the verification regulation JJG547-88 issued by DGS. The counter apply American micro-computer controlling and dealing technology, semi-conductor technology and imported air pump, with the character of multi-function, high precision measure, high speed, portable and easy to operate. The counter one time sampling can test the number of dust particles on different kinds of grain sizes.
Application of particle counter
• Cleanroom Monitoring
• Facility Certification
• Facility Monitoring
• Filter Testing
• Cleanroom Laundries
• Cleanroom Packing
• Aerospace
• Hospital Surgical Rooms
• Pharmaceutical
• Paint Spray Booths
•Food Processing Area
•Hard Disk Drive Manufacturing
Specification of particle counter
| Model |
Y09-5100
|
Y09-550
|
Y09-350 |
| Outside Dim | 268×295×192(mm3) | ||
| Display | 7inch Color Screen | ||
| Weight | 8.4kg | ||
| Max.Consumption | 80W | ||
| Power Source | DC16.8V | ||
| Size Channels | 0.5, 1, 3, 5, 10, 25μm | 0.3,0.5,1,3,5,10μm | |
| Flow Rate | 100L/min | 50L/min | |
| Sample Time | 6~999999s(Selectable) | ||
| Zero Count | ≤10min | ||
| Hold Time | 0-9999s | ||
| Delay Time | 5-999s | ||
| Printer | Built-in Thermal Printer | ||
| Data Storage | 20000 Samples/300Samples of UCL(With PC Software) | ||
| Maximum Rated Particle Concentration | 35000 particles/L | ||
| Operating Time | 3 hours | 5 hours | |
| Environmental | Temperature:10~35℃; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa | ||
| Material | SUS316L Stainless Steel | ||
| Class | ISO14644-1:2015/GMP:2015 | ||
Related products
|
Model |
Y09-110 |
Y09-310NW |
Y09-3016HW |
|
Picture |
|
|
|
| Size Channels | 0.1,0.2,0.3,0.5,0.7,1.0μm | 0.3,0.5,1,3,5,10μm | |
| Flow Rate | 28.3L/min | 2.83L/min | |
| Display | 7inch Color Screen | 4.3inch Color Screen | |
