Name: | Indoor Air Quality Monitor PM1.0, PM2.5, PM10 | Outside Dim: | 130*220*45(Wide*High*Deep) |
---|---|---|---|
Detection Range: | 0.1-999.9μg /m3 | Zero Count: | <=10min |
Printer: | External Thermal Printer(optional) | Power Source: | DC8.4 V Built-in Lithium Battery |
High Light: | Indoor Air Quality Monitor PM1.0,Indoor Air Quality Monitor PM2.5,Indoor Air Quality Monitor PM10 |
Indoor Air Quality Monitor PM1.0, PM2.5, PM10
The air quality monitor product trend has evolved from fixed, desktop, to portable types; Some air pollution meters, detector, tracker or gas analyzer support PM2.5. Although the portable air quality monitor can be mobile, but not yet be wearable due to PM2.5 sensor size and weight constraint.
The specification of air quality monitor
Model | Y09-PM (Handheld) |
Outside Dim | 130*220*45(Wide*High*Deep) |
Display | LCD |
Weight | 0.6kg |
Maximum consumption | 10W |
Power Source | DC8.4 V built-in Lithium Battery |
Size channels | PM1.0 PM2.5 PM10 |
Flow Rate | 2.83L/min (Imported Pump) |
Sample Time | 0-999999s Selectable |
Zero Count | <=10min |
Location Labels | 0-999 |
Printer | External thermal printer(optional) |
Detection Range | 0.1-999.9μg /m3 |
Data Storage | 1000 records |
Light Source | Laser Diode (30000 hours mean time between failures) |
Operating Time | 5 hours |
Environmental | Temperature:10-40℃;Humidity:<85%RH;Atmosphere Pressure:86-106Kpa |
Accessories | Carry case ;zero count filter; AC adapter; pc cable; pc software |

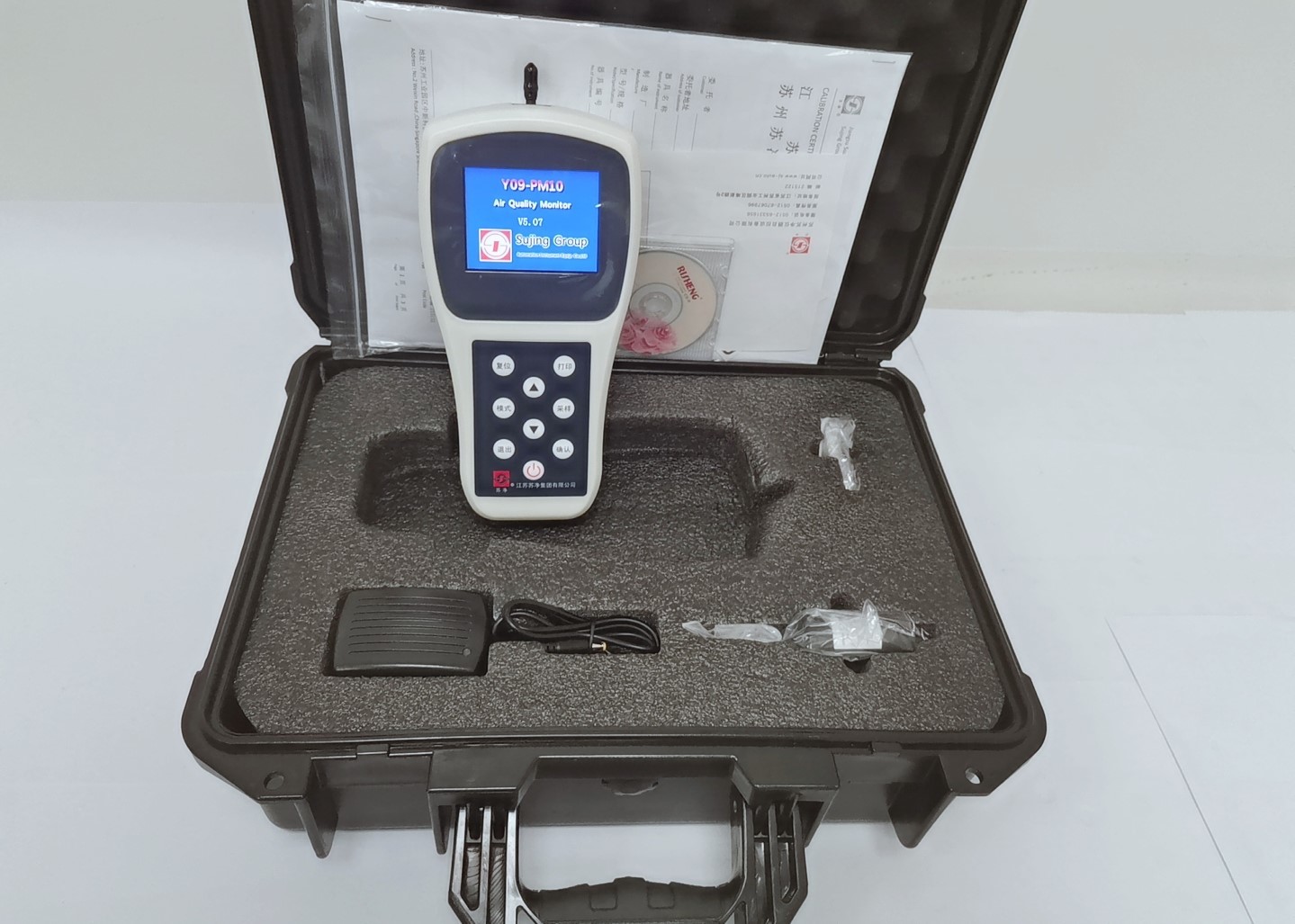

The picture of air quality monitor
