Particle Size Range: | 2-400 μm | Maximum Detection Concentration: | 10000 Particles/ml |
---|---|---|---|
Particle Size Channel: | 320(L)×309(W)×394(H) Mm | Display Output: | 7 Inch LCD Color Touch Screen |
Highlight: | LCD Touch Screen Liquid Particle Counter,SS316 Fluid Particle Counter,Industrial Portable Liquid Particle Counter |

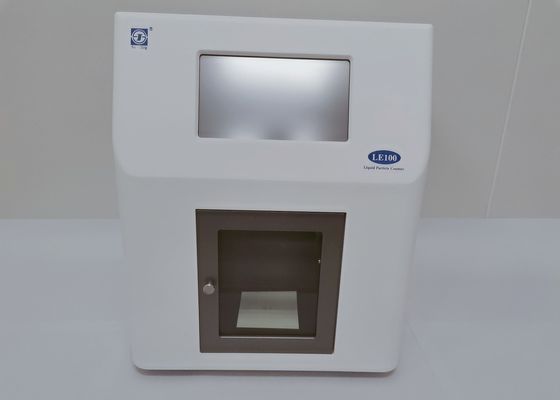

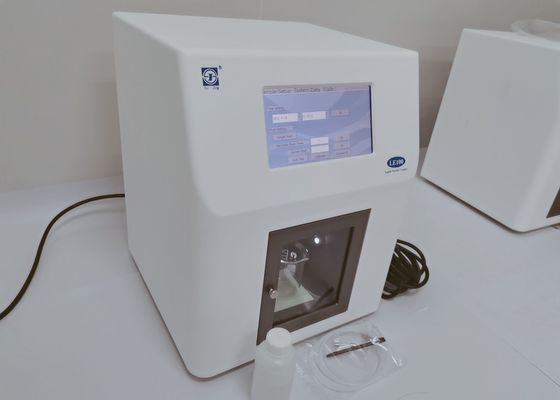

The Liquid Particle Counter is an ideal choice for water particle counting in cleanroom environments. This particle counter is made from high quality ABS material, which ensures durability and reliability. It is equipped with an AC220V/50Hz power supply
This Particle Counter is highly reliable, and has a built-in printer to provide printouts of the particle counting results. It is ideal for cleanroom particle counting, and is suitable for water particles. Additionally, it is easy to use and maintain, making it a great choice for particle counting applications.
Technical parameters | liquid particle counter |
Particle size range | 2-400 μm |
Particle size channel | 24 |
Maximum detection concentration | 10000 particles/ml |
Accuracy | ±10% |
Repeatability | RSD<2% (particles>1000 per ml, 5ml sample) |
Resolution | <10% (U.S.P, ISO 21501) |
Syringe specifications | 1ml, 5ml, 10ml*, 25ml |
Sampling speed | 20 ml/min* |
Sample volume accuracy | ±1% |
Minimum sampling volume | 0.2ml** |
Sensor material | 316 stainless steel, quartz glass, PTFE, NBR |
Power supply | AC 100~240V, 50/60HZ |
Mixing method | Magnetic stirrer (speed adjustable) |
Data output | RS232 port; USB; built-in thermal printer |
Display output | 7 inch LCD color touch screen |
Size | 320(L)×309(W)×394(H) mm |
Weight | 11.0 kg |
Operating environment | Temperature 10-40 ℃; RH 0 ~ 95% non-condensing |
Software system | LE-Assistant (optional) |
* Standard configuration ** Under 1ml syringe specifications the minimum sampling volume is 0.2ml, under the standard configuration, the minimum sampling volume is 0.4ml |
8.Exhaust fan | 1. Display |
9.heat emission hole | 2. Door of sample chamber |
10. Power switch | 3. Thermal printer |
11. AC power outlet and fuse | 4. Syringe |
12. R232 port | 5. Sample tube |
13. Sample drain | 6. LED chamber light |
14. USB port | 7. Stirrer |
Components of liquid particle counter
The instrument ×1 | Power cord ×1 |
Fuse ×1 | Detecting cup ×1 |
Stir rod ×1 | Operation manual ×1 |
Drain line tube ×1 | Testing report ×1 |
Touch pen ×1 | Quality certificate ×1 |
Printing paper ×1 | Warranty card ×1 |
Packing list ×1 |
Application of liquid particle counter
Injections testing under CP, USP, EP, JP and other standards
1.Cleanliness detecting of medical equipment / parts
2.Filtration efficiency detection
3.Laboratory water testing
