Y09-5100X Pro Professional Air Particle Counter for Various Particle Sizes and Sampling Periods
|
Y09-5100X Pro Professional Air Particle Counter for Various Particle Sizes and Sampling Periods
| Brand Name: | SUJING |
| Model Number: | Y09-5100X Pro |
| MOQ: | 1UNIT |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000units/week |

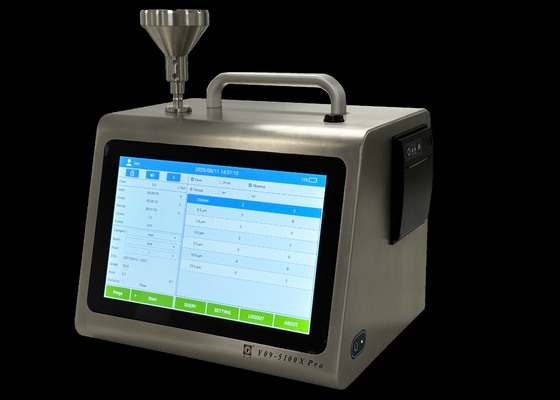

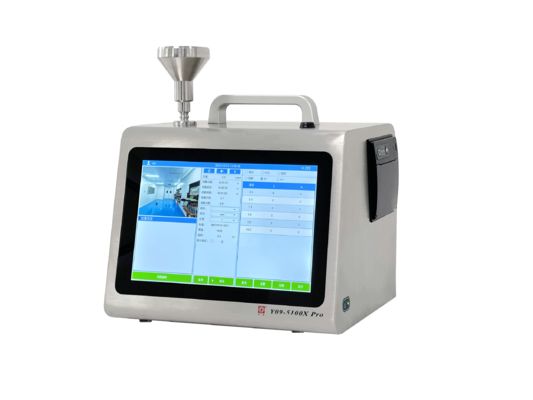

Y09-5100X Pro Laser Air Particle Counter
Y09-5100X Pro laser air particle counter is a new generation of particle counter products developed to adapt to the new national policy and new orientation. It is widely used in electronics, optics, chemistry, food, cosmetics, medicine and health, biological products, aerospace, and other fields.
Y09-5100X Pro meets national standards, including GB/T29024.4-2017, ISO21501-4:2018 and GB/T 25915.1-2021 and pharmaceutical GMP specifications. Compared with similar products, it is smaller, lighter, and more compact. This instrument is mainly used to measure the size and number of dust particles per unit volume of air in the air environment. It can directly detect clean environments with cleanliness levels from class 300,000 to 10.
Technical specification
| Size: | 245 x 292 x 276 mm3 |
| Weight: | 7 KG (include battery) |
| Power Supply: | DC 16.8 V (rechargeable built-in lithium-ion battery) |
| Particle size channel: | 0.5, 1.0, 3.0, 5.0, 10.0, 25.0 (μm) |
| Sampling period: | 1 - 999,999 sec |
| Sampling flow rate: | 100 L/min |
| Max sampling air concentration: | 35,000 particles /L (particle size≥0.5 μm; sampling air must not contain corrosive gases such as acid and alkali) |
| Alarm: | Built-in alarm buzzer |
| Ventilation: | Built-in HEPA filter (> 99.997%@0.3 um) |
| Data storage: | 1,000,000 sets of common test data; 10,000 sets of statistical mode operation data |
| Data security: | Authority management (Authority level can be divided into administrator, technician, operator) |
| Light source and life span: | Semiconductor laser source >30,000 h |
| Zero count: | ≤10 min |
| Interface: | USB |
| No. of rooms: | Unlimited |
| Name of rooms: | Unlimited (Chinese, letters, numbers, special characters) |
| Calibration frequency: | Once a year recommended |
| Shell material: | 316L stainless steel |
| Printer: | Built-in thermal printer |
