TSP Light Scattering Outdoor Dust Monitor PM2.5 PM10

TSP Light Scattering Outdoor Dust Monitor PM2.5 PM10
TSP Light Scattering Outdoor Dust Monitor PM2.5 PM10

Large Image :  TSP Light Scattering Outdoor Dust Monitor PM2.5 PM10

Product Details:
Place of Origin: China
Brand Name: Sujing
Model Number: SJFC-200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detailed Product Description
Name: Dust Particle Measurement Outside Dim: 200×160×90(Wide×High×Deep)
Display: 3.5 Inch Color Screen(optional) Weight: 2.5KG
Size Channels: PM1.0 PM2.5 PM10 (or PM2.5 PM10 TSP) Detection Range: 0-40mg/m3
High Light:

TSP outdoor dust monitor

,

PM10 outdoor dust monitor

,

40mg/m3 outdoor dust monitor

PM2.5 and PM10 TSP Light Scattering Dust Monitor for Outdoor



SJFC-200 Dust Monitor is used to monitor the mass concentration of the suspended particulate in the air. It adopts light scattering technique and has sheath air protecting. It is applied to work place measurements, mines and construction site air quality control, occupational studies, ambient air measurement, ventilation filter control (filter efficiency).



The specification of dust particle measurement



Outside Dim 200×160×90(Wide×High×Deep)
Display 3.5 inch color screen(optional)
Battery built-in 5200mah li-ion Battery(optional)
Weight 2.5kg
Max.Consumption 10W
Power Source DC12-24V
Size channels PM1.0 PM2.5 PM10 (or PM2.5 PM10 TSP)
Flow Rate 1L/min ±5% flow (long life pump)
Sample Time 1-999s Selectable, 6s recommended
Sensibility 0.1µg/m3
Repeatability ±2%
Accuracy ±10%
Detection Range 0-40mg/m3
Data Output RS485 / RS232
Comm. protocol Modbus RTU
Operating Time 5 hours
Optional parameters Temperature, RH, combustible gas, oxygen, carbon dioxide, etc.
Data records 2000
Environmental

Temperature: -10-50; Humidity:<85%RH;

Atmosphere Pressure:86-106Kpa

Accessories

Carrying case, power adapter, zero count filter ,

Optional: explosion protective and outdoor protective case

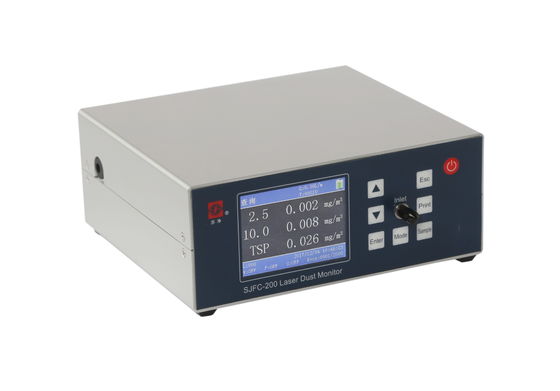

The picture of dust particle measurement

TSP Light Scattering Outdoor Dust Monitor PM2.5 PM10 0
