| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | SJFC-200 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Particle Dust Meter Particle Measurement For Indoor Or Outdoor | Outside Dim: | 200×160×90(Wide×High×Deep) |
|---|---|---|---|
| Display: | 3.5 Inch Color Screen(optional) | Weight: | 2.5KG |
| Size Channels: | PM1.0 PM2.5 PM10 (or PM2.5 PM10 TSP) | Detection Range: | 0-40mg/m3 |
| High Light: | 40mg/m3 outdoor air quality monitor,TSP outdoor air quality monitor,RS485 outdoor air quality monitor |
||
Particle Dust Meter Particle Measurement For Indoor Or Outdoor
This Particle Dust Meter Particle Measurement For Indoor Or Outdoor is composed of full English color touch screen, high performance extraction pump, dust concentration detection circuit, data processing circuit, low voltage display, safe power supply and bluetooth printer.
Compared with the traditional detector, this instrument uses the color English interface, the touch screen control, simplifies the operation step, makes the user more convenient and quick operation of the instrument.
The specification of dust particle measurement
| Outside Dim | 200×160×90(Wide×High×Deep) |
| Display | 3.5 inch color screen(optional) |
| Battery | built-in 5200mah li-ion Battery(optional) |
| Weight | 2.5kg |
| Max.Consumption | 10W |
| Power Source | DC12-24V |
| Size channels | PM1.0 PM2.5 PM10 (or PM2.5 PM10 TSP) |
| Flow Rate | 1L/min ±5% flow (long life pump) |
| Sample Time | 1-999s Selectable, ≥6s recommended |
| Sensibility | 0.1µg/m3 |
| Repeatability | ≤±2% |
| Accuracy | ≤±10% |
| Detection Range | 0-40mg/m3 |
| Data Output | RS485 / RS232 |
| Comm. protocol | Modbus RTU |
| Operating Time | 5 hours |
| Optional parameters | Temperature, RH, combustible gas, oxygen, carbon dioxide, etc. |
| Data records | 2000 |
| Environmental |
Temperature: -10-50℃; Humidity:<85%RH; Atmosphere Pressure:86-106Kpa |
| Accessories |
Carrying case, power adapter, zero count filter , Optional: explosion protective and outdoor protective case |

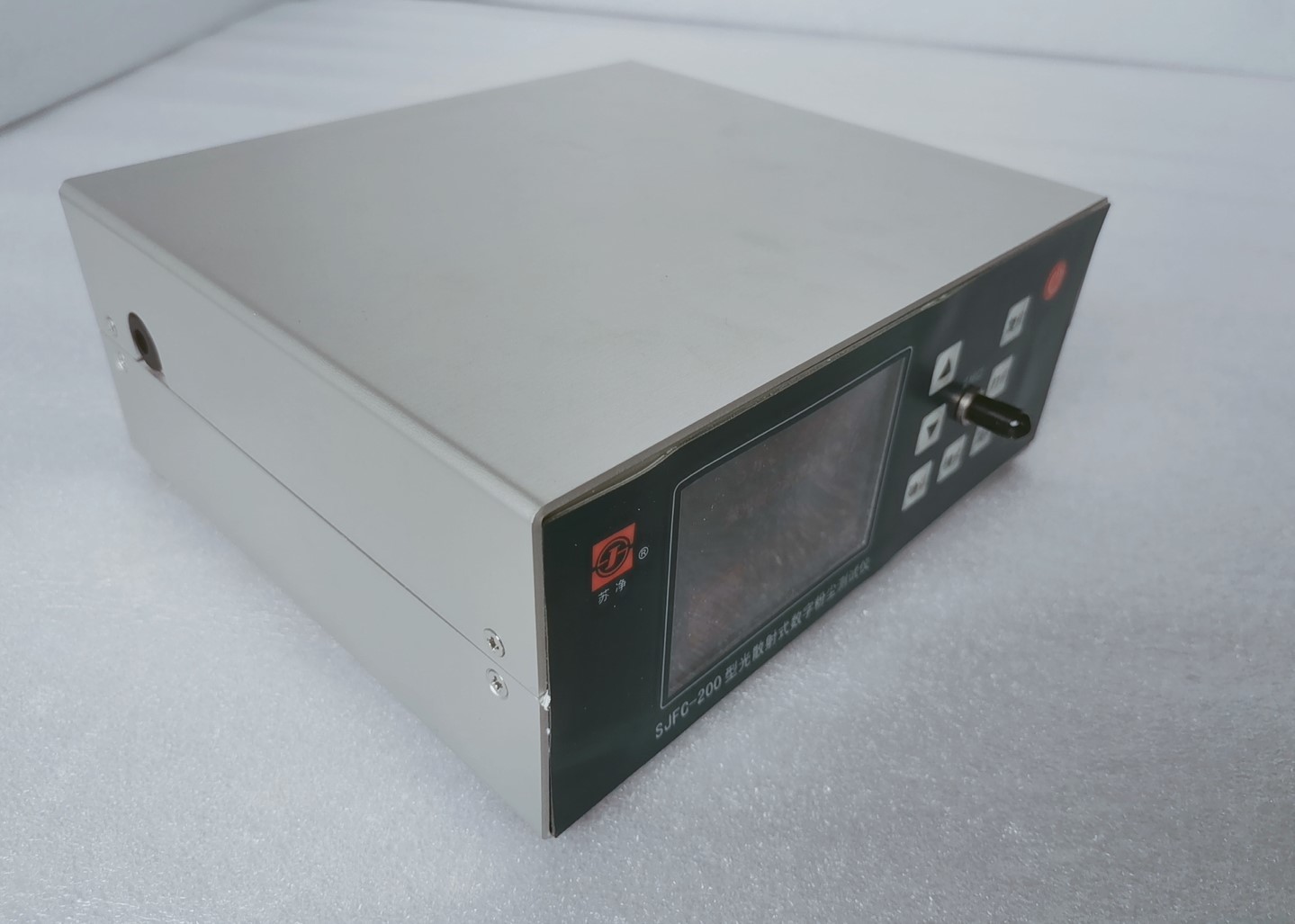

The picture of dust particle measurement
