Handheld Laser Diode Dust Particle Measurement Y09-PM10 2.83L/Min

Handheld Laser Diode Dust Particle Measurement Y09-PM10 2.83L/Min
Handheld Laser Diode Dust Particle Measurement Y09-PM10 2.83L/Min

Large Image :  Handheld Laser Diode Dust Particle Measurement Y09-PM10 2.83L/Min

Product Details:
Place of Origin: China
Brand Name: SUJING
Model Number: Y09-PM10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detailed Product Description
Name: Y09-PM10 Air Quality Monitor Dust Laser AirParticle Measurement Weight: 0.6kg
Outside Dim: 130*220*45(Wide*High*Deep) Detection Range: 0.1-999.9μg /m3
Zero Count: <=10min Printer: External Thermal Printer(optional)
High Light:

Y09-PM10 Dust Particle Measurement

,

2.83L/Min Dust Particle Measurement

,

DC8.4V Dust Particle Measurement

Y09-PM10 Air Quality Monitor Dust Laser AirParticle Measurement



 Air quality monitor uses the advanced sensor components as a detection unit, can carry out data analysis of air quality of atmospheric, this instrument can monitor PM1.0 / PM2.5 and PM10 in the environment, and so on, and carries on the comprehensive analysis of the data content, in the form of English characters shows that comprehensive air quality excellent, good, medium and poor.



The specification of air quality monitor



Model Y09-PM10 (Handheld)
Outside Dim 130*220*45(Wide*High*Deep)
Display LCD
Weight 0.6kg
Maximum consumption 10W
Power Source DC8.4 V built-in Lithium Battery
Size channels PM1.0 PM2.5 PM10
Flow Rate 2.83L/min (Imported Pump)
Sample Time 0-999999s Selectable
Zero  Count <=10min
Location Labels 0-999
Printer External thermal printer(optional)
Detection Range 0.1-999.9μg /m3
Data Storage 1000 records
Light Source Laser Diode (30000 hours mean time between failures)
Operating Time 5 hours
Environmental Temperature:10-40℃;Humidity:<85%RH;Atmosphere Pressure:86-106Kpa
Accessories Carry case ;zero count filter; AC adapter; pc cable; pc software

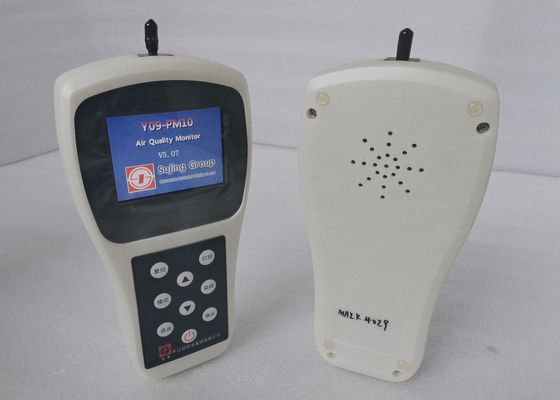

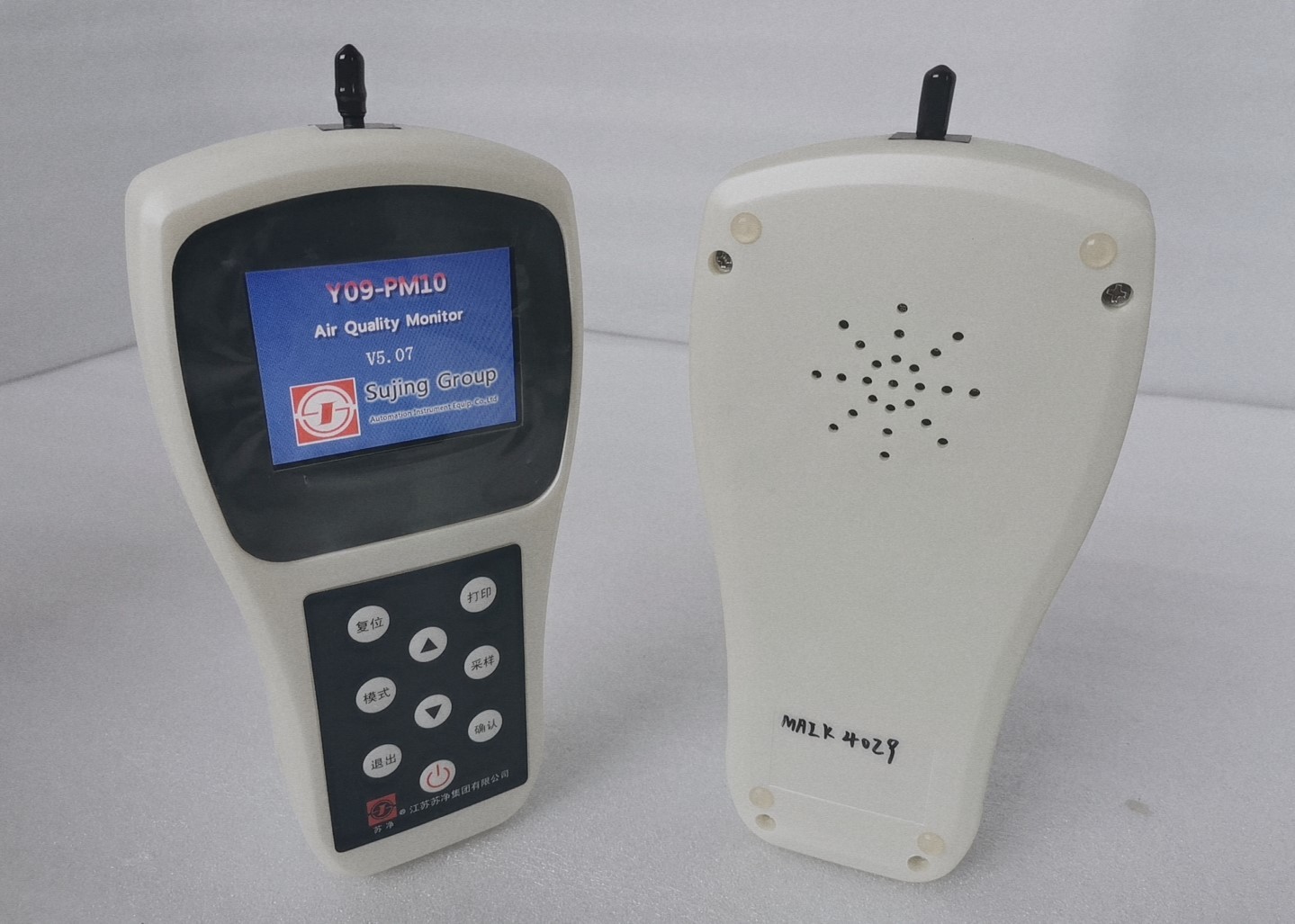

The picture of air quality monitor



Handheld Laser Diode Dust Particle Measurement Y09-PM10 2.83L/Min 0
