Modbus RTU RS485 Dust Particle Measurement PM2.5 PM1 PM10

Basic Information
Place of Origin: China
Brand Name: Sujing
Model Number: SJFC-200
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Name: SJFC-200 PM2.5 PM1 PM10 Dust Particle Measurement Dust Detector Outside Dim: 200×160×90(Wide×High×Deep)
Display: 3.5 Inch Color Screen(optional) Weight: 2.5KG
Size Channels: PM1.0 PM2.5 PM10 (or PM2.5 PM10 TSP) Detection Range: 0-40mg/m3
High Light:

Modbus RTU Dust Particle Measurement

,

RS485 Dust Particle Measurement

,

106Kpa Dust Particle Measurement


Product Description

SJFC-200 PM2.5 PM1 PM10 Dust Particle Measurement Dust Detector



SJFC-200 PM2.5 PM1 PM10 Dust Particle Measurement Dust Detector is used to test dust concentration. the test dust by light attenuation curve, Intuitive shows the measured dust concentration via the control program, Using the principle of scattering dust analyzer calibration.





The specification of dust particle measurement



Outside Dim 200×160×90(Wide×High×Deep)
Display 3.5 inch color screen(optional)
Battery built-in 5200mah li-ion Battery(optional)
Weight 2.5kg
Max.Consumption 10W
Power Source DC12-24V
Size channels PM1.0 PM2.5 PM10 (or PM2.5 PM10 TSP)
Flow Rate 1L/min ±5% flow (long life pump)
Sample Time 1-999s Selectable, 6s recommended
Sensibility 0.1µg/m3
Repeatability ±2%
Accuracy ±10%
Detection Range 0-40mg/m3
Data Output RS485 / RS232
Comm. protocol Modbus RTU
Operating Time 5 hours
Optional parameters Temperature, RH, combustible gas, oxygen, carbon dioxide, etc.
Data records 2000
Environmental

Temperature: -10-50; Humidity:<85%RH;

Atmosphere Pressure:86-106Kpa

Accessories

Carrying case, power adapter, zero count filter ,

Optional: explosion protective and outdoor protective case

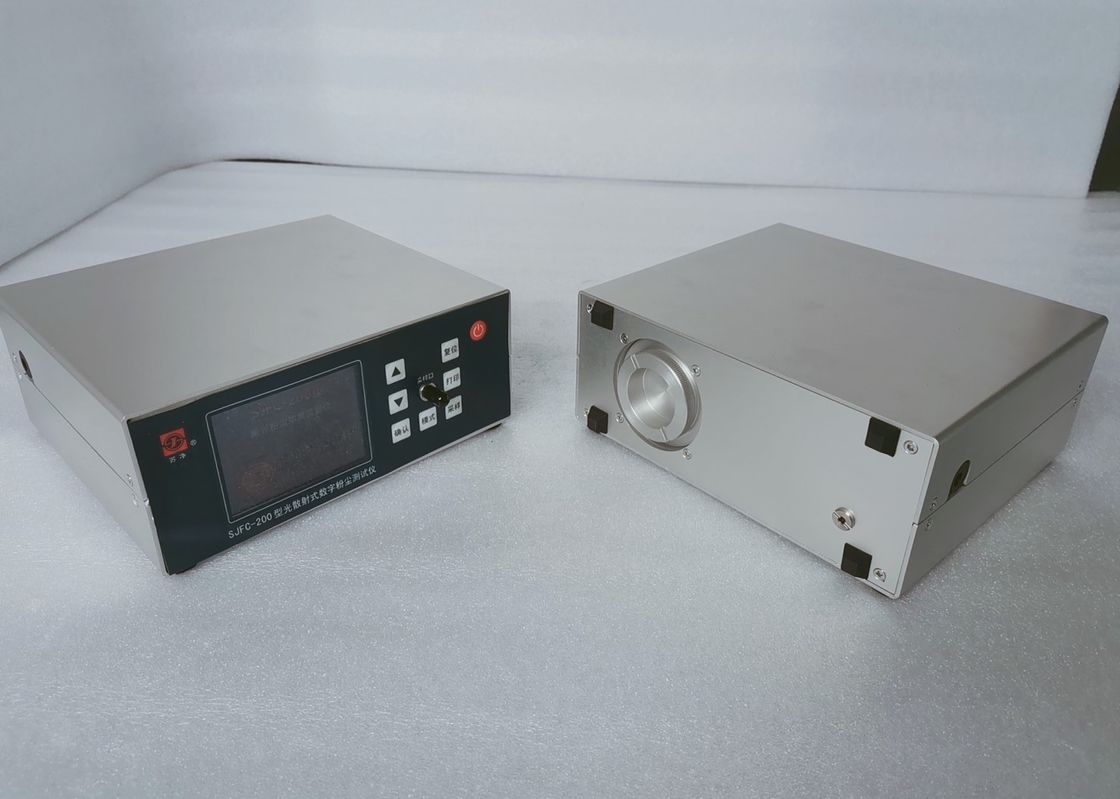

The picture of dust particle measurement
