Name: | Y09-PM10 Air Quality Monitor Dust Laser AirParticle Measurement | Detection Range: | 0.1-999.9μg /m3 |
---|---|---|---|
Zero Count: | <=10min | Printer: | External Thermal Printer(optional) |
Warranty Time: | 1 Year | Size Channels: | PM1.0 PM2.5 PM10 |
Highlight: | Y09-PM Air Quality Detector,PM10 Air Quality Detector,10W Laser Air Quality Detector |
Y09-PM Air Quality Detector Dust Laser AirParticle Measurement
The specification of air quality monitor
Model | Y09-PM (Handheld) |
Outside Dim | 130*220*45(Wide*High*Deep) |
Display | LCD |
Weight | 0.6kg |
Maximum consumption | 10W |
Power Source | DC8.4 V built-in Lithium Battery |
Size channels | PM1.0 PM2.5 PM10 |
Flow Rate | 2.83L/min (Imported Pump) |
Sample Time | 0-999999s Selectable |
Zero Count | <=10min |
Location Labels | 0-999 |
Printer | External thermal printer(optional) |
Detection Range | 0.1-999.9μg /m3 |
Data Storage | 1000 records |
Light Source | Laser Diode (30000 hours mean time between failures) |
Operating Time | 5 hours |
Environmental | Temperature:10-40℃;Humidity:<85%RH;Atmosphere Pressure:86-106Kpa |
Accessories | Carry case ;zero count filter; AC adapter; pc cable; pc software |

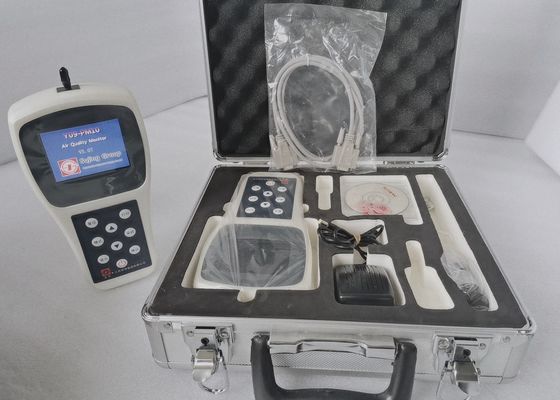

The picture of air quality monitor
