Modbus RTU Dust Concentration Measuring Instrument RS485 40mg/M3
|
Modbus RTU Dust Concentration Measuring Instrument RS485 40mg/M3
| Brand Name: | Sujing |
| Model Number: | SJFC-200 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
Detail Information
Place of Origin:
China
Name:
SJFC-200 Dust Concentration Measuring Instrument PM2.5 Detector
Outside Dim:
200×160×90(Wide×High×Deep)
Display:
3.5 Inch Color Screen(optional)
Weight:
2.5KG
Size Channels:
PM1.0 PM2.5 PM10 (or PM2.5 PM10 TSP)
Detection Range:
0-40mg/m3
Packaging Details:
Carton
Delivery Time:
5 work days
Supply Ability:
800/per month
Highlight:
40mg/M3 Concentration Measuring Instrument
,RS485 Concentration Measuring Instrument
,Modbus RTU Concentration Measuring Instrument
Product Description
SJFC-200 Dust Concentration Measuring Instrument PM2.5 Detector
This SJFC-200 Dust Concentration Measuring Instrument PM2.5 Detector adopts the advanced microcomputer technology, which is processed by the central processing unit, which has the advantages of fast processing speed, strong anti-interference ability and high measurement accuracy.
The specification of dust particle measurement
| Outside Dim | 200×160×90(Wide×High×Deep) |
| Display | 3.5 inch color screen(optional) |
| Battery | built-in 5200mah li-ion Battery(optional) |
| Weight | 2.5kg |
| Max.Consumption | 10W |
| Power Source | DC12-24V |
| Size channels | PM1.0 PM2.5 PM10 (or PM2.5 PM10 TSP) |
| Flow Rate | 1L/min ±5% flow (long life pump) |
| Sample Time | 1-999s Selectable, ≥6s recommended |
| Sensibility | 0.1µg/m3 |
| Repeatability | ≤±2% |
| Accuracy | ≤±10% |
| Detection Range | 0-40mg/m3 |
| Data Output | RS485 / RS232 |
| Comm. protocol | Modbus RTU |
| Operating Time | 5 hours |
| Optional parameters | Temperature, RH, combustible gas, oxygen, carbon dioxide, etc. |
| Data records | 2000 |
| Environmental |
Temperature: -10-50℃; Humidity:<85%RH; Atmosphere Pressure:86-106Kpa |
| Accessories |
Carrying case, power adapter, zero count filter , Optional: explosion protective and outdoor protective case |

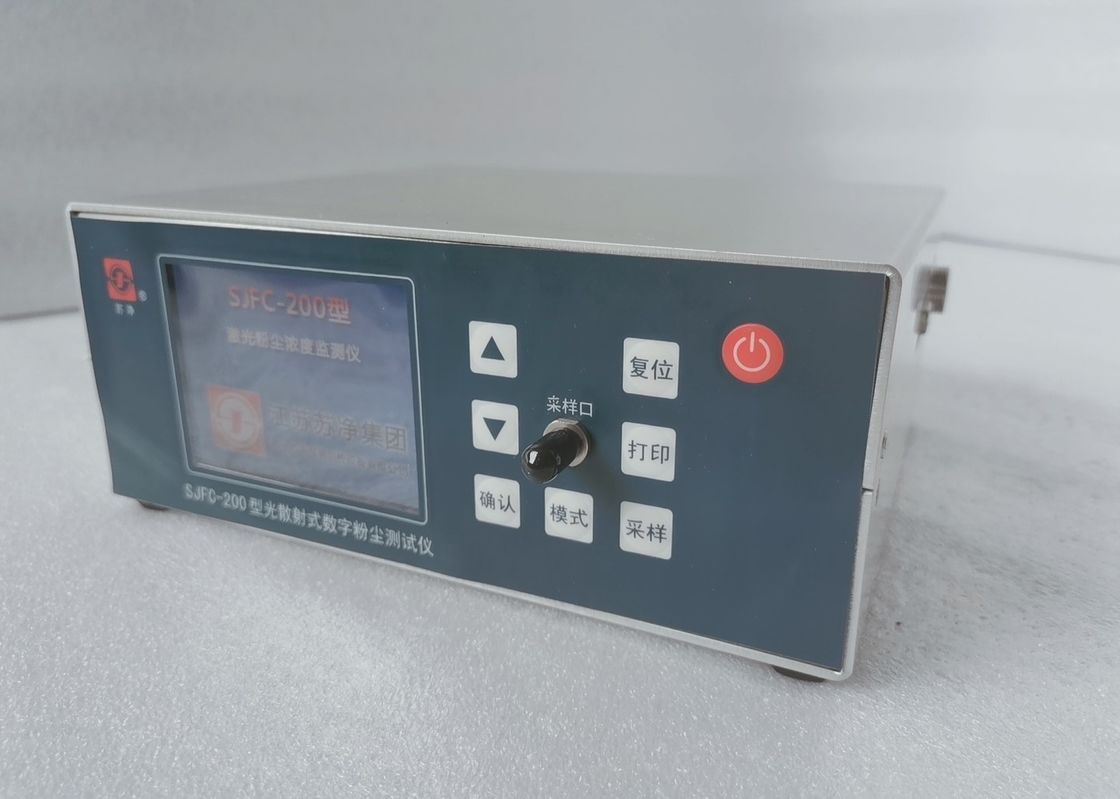

The picture of dust particle measurement
