Name: | Dust Monitor Dust Particle Monitor Dust Control Gas Detection | Outside Dim: | 200×160×90(Wide×High×Deep) |
---|---|---|---|
Display: | 3.5 Inch Color Screen(optional) | Weight: | 2.5KG |
Size Channels: | PM1.0 PM2.5 PM10 (or PM2.5 PM10 TSP) | Detection Range: | 0-40mg/m3 |
Highlight: | RS232 Dust Particle Monitor,Modbus RTU Dust Particle Monitor,10W Dust Particle Monitor |
Dust Monitor Dust Particle Monitor Dust Control Gas Detection
Dust Monitor Dust Particle Monitor Dust Control Gas Detection is a measuring instrument of laser scattering dust particles (PM1.0, PM2.5, PM10). It is mainly used for measuring the concentration of dust particles in non-explosion-proof industrial sites. The product has the characteristics of fast response, high sensitivity, good stability, English interface, easy installation and so on
The specification of dust particle measurement
Outside Dim | 200×160×90(Wide×High×Deep) |
Display | 3.5 inch color screen(optional) |
Battery | built-in 5200mah li-ion Battery(optional) |
Weight | 2.5kg |
Max.Consumption | 10W |
Power Source | DC12-24V |
Size channels | PM1.0 PM2.5 PM10 (or PM2.5 PM10 TSP) |
Flow Rate | 1L/min ±5% flow (long life pump) |
Sample Time | 1-999s Selectable, ≥6s recommended |
Sensibility | 0.1µg/m3 |
Repeatability | ≤±2% |
Accuracy | ≤±10% |
Detection Range | 0-40mg/m3 |
Data Output | RS485 / RS232 |
Comm. protocol | Modbus RTU |
Operating Time | 5 hours |
Optional parameters | Temperature, RH, combustible gas, oxygen, carbon dioxide, etc. |
Data records | 2000 |
Environmental |
Temperature: -10-50℃; Humidity:<85%RH; Atmosphere Pressure:86-106Kpa |
Accessories |
Carrying case, power adapter, zero count filter , Optional: explosion protective and outdoor protective case |

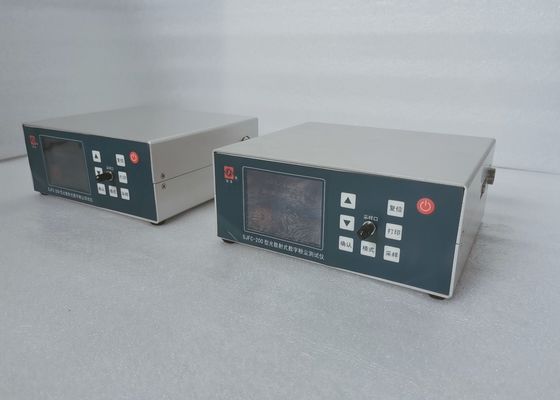

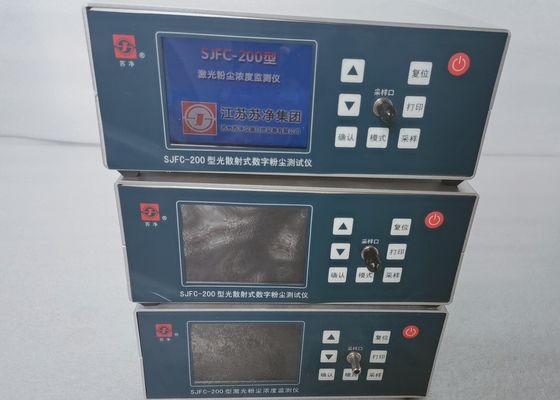

The picture of dust particle measurement
