| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | Y09-3016 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Particle Counter | Size Channel: | 0.3, 0.5, 1, 3, 5, 10 μm |
|---|---|---|---|
| Flow Rate: | 0.1cfm | Light Source: | Laser Diode |

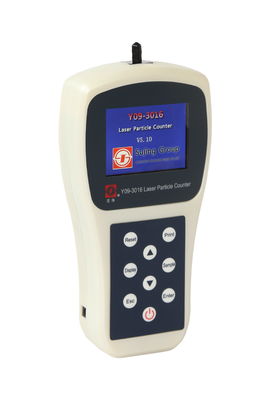

Y09-3016 Handheld Particle Counter
0.1CFM (2.83LPM)- Handheld Particle Counter
Y09-3016 Handheld Particle Counter is used to detect the size and quantity of particles in the air per unit volume of the clean environments. It can quickly check or validate ISO Class 5-9 clean rooms and controlled environments.
With LCD display, the instrument uses laser diode as the light source. It has many features, such as slim design, light weight, high precision, simple operation, micro computer control, and can store and print sampling results. It is widely used in the electronics, optics, chemistry, food and beverage, pharmacy and sanitation, biology, precision machinery, aerospace, and other fields.
| Outside Dim | 300*360*126 mm3(Wide*Deep*High) |
| Display | LCD |
| Weight | 0.6kg |
| Battery | (Lithium Ion Battery),7.2V,2200mAh |
| Power Source | Li-ion charger ,8.4V DC,1A:9-250V AC, 50-60Hz |
| Size Channels | 0.3, 0.5, 1, 3, 5, 10 μm |
| Flow Rate | 2.83L/min |
| Sample Time | 1s-99h |
| Cycles | 0-99 |
| Hold Time | 0-999sec |
| Delay Time | 0-99sec |
| Light source | Laser Diode |
| Zero Court | <=10min |
| Alarm | Low Battery ;100, 1000, 10000 Class /ISO |
| Coincidence Loss | 5%,2000000ps/cf |
| Operating Time | more than 5.5 hours |
| output | RS-232 to pc or printer via optional cable |
| Location Labels | 0-999 |
| Data Storage | 1000 Samples (With PC Software) |
| Environmental | 10degrees celsius-40degrees celsius ; Humidity: 20%-90% RH ;Atmosphere Pressure 86Kpa-106Kpa |
| Standard feathure | suitcase ;charger;sampling head;line of communication;communication software ;Automatic Purifier |
| Optional component | External printer |
Application
• Cleanroom Monitoring
• Facility Certification
• Facility Monitoring
• Filter Testing
• Cleanroom Laundries
• Cleanroom Packing
• Aerospace
• Hospital Surgical Rooms
• Pharmaceutical
• Paint Spray Booths
•Food Processing Area
•Hard Disk Drive Manufacturing
Suzhou Sujing Automation Instrument Equipment Co., Ltd. (herein after referred to as Sujing Instrument) is boasting the largest market share in the particle measurement field in China, with complete integration of scientific research, development and production.
Sujing Instrument is one subsidiary company of Sujing Group.(Sujing Group has 11 subsidiary companies)
Sujing brand has been granted the honor of "China Famous Brand" since 1983. Sujing Group has been keeping the first place among competitors in the same industry for 35 years in a row.
The mission of Sujing Instrument is to provide products and services accociated with particle measurement and monitoring, which are application driven.
Sujing instrument is an ISO 9001:2015 Registered Company
1. Research
2.Material
3.Produce
4.Calibration
5.Testing
5.Packing
