| Place of Origin: | China |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Y09-350 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Y09-350 Laser Air Particle Counter In Pharma Cleanroom | Size Channel: | 0.3,0.5, 1, 3, 5, 10 μm |
|---|---|---|---|
| Flow Rate: | 50LPM | Light Source: | Laser Diode |
| Zero Count: | ≤10min | Maximum Rated Particle Concentration: | 35000 Particles/L |
| High Light: | Y09-350 Laser Air Particle Counter,80W Laser Air Particle Counter,50LPM Laser Air Particle Counter |
||
Y09-350 Laser Air Particle Counter In Pharma Cleanroom
SUJING is a pioneer and innovator having been the first to introduce the battery powered portable particle counter in China . Since then, SUJING has developed virtually every meaningful feature for portable particle counters, many of which today are considered industry standard. This includes but is not limited to high flow rates of 50 LPM and 100 LPM. The is fully compliant with ISO 21501-4; PIC/S; FDA CGMP; EU GMP, Annex 1; ISO 14644-1/2:2015; and others.
Specification of air particle counter
| Model | Y09-350 |
| Outside Dim | 268×192×292(mm3) |
| Display | 7inch Color Screen |
| Weight | 8.4kg |
| Max.Consumption | 80W |
| Power Source | DC16.8V |
| Size Channels | 0.3,0.5, 1, 3, 5, 10μm |
| Flow Rate | 50L/min |
| Sample Time | 6~999999s(Selectable) |
| Zero Count | ≤10min |
| Hold Time | 0-9999s |
| Delay Time | 5-999s |
| Printer | Built-in Thermal Printer |
| Data Storage | 20000 Samples/300Samples of UCL(With PC Software) |
| Maximum Rated Particle Concentration | 35000 particles/L |
| Operating Time | More than 5.5 hours |
| Environmental | Temperature:10~35℃; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa |
| Material | SUS316L Stainless Steel |
| Class | ISO14644-1:2015/GMP:2015 |

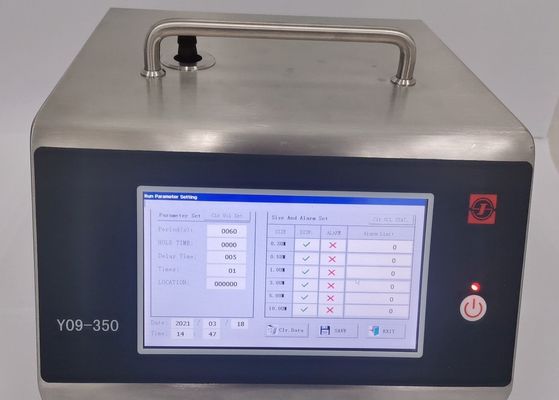

Picture of Y09-350 Laser Particle Counter
