| Place of Origin: | JIANGSU |
|---|---|
| Brand Name: | SUJING |
| Model Number: | Y09-310NW |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500unit/per month |
| Size Channels: | 0.3, 0.5, 1, 3, 5, 10 μm | Flow Rate: | 28.3L/min (Imported Pump) |
|---|---|---|---|
| Operating Time: | More Than 5.5 Hours | Weight: | 3.5kg |
| Class: | ISO14644-1:2015 | Printer: | Built-in Thermal Printer |
| Highlight: | Y09-310NW Portable Laser Particle Counter,35000 particles/L Laser Particle Counter,80W Portable Laser Particle Counter |
||

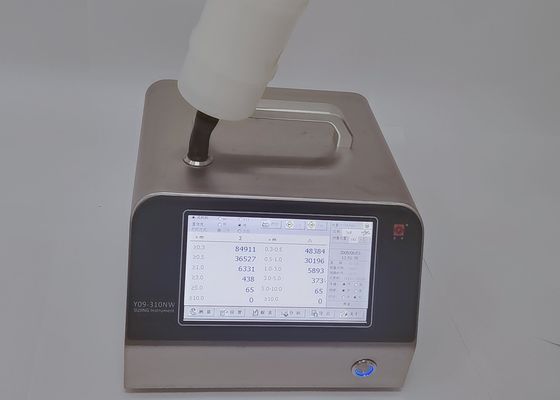

Portable Laser Particle Counter Display Six Channels Simultaneously
The particle counter is for everyday use in environmental measurements, factories and offices to detect the concentration of dust particles to which workers are subjected. Such a particle counter is also used in industrial research and development or in clean rooms. The particle counter is able to aspirate air in order to check the amount of particles.
The specification of portable particle counter
| Outside Dim | 245*268*160 (mm3); (Wide*Deep*High) |
| Display | 7 inch touch screen |
| Weight | 3.5Kg |
| Max. Consumption | 80W |
| Power Source | DC16.8V built-in Lithium Battery; AC 220V ± 10% |
| Size Channels | 0.3, 0.5, 1, 3, 5, 10 μm |
| Calculation | 95% UCL calculation, can display and print particle concentration (particles / cubic meter, particles /cubic feet) |
| Flow Rate | 28.3L/min (Imported Pump) |
| Sample Time | 6s---999999s (Selectable) |
| Cycles | 0-99 |
| Hold Time | 0-9999s |
| Delay Time | 5-999s |
| Zero Court | <=10min |
| Location | 1-99 |
| Alarm | ISO Class |
| Printer | Built-in Thermal Printer |
| Data Storage | 20000Samples /300 Samples of UCL (With PC Software) |
| Light Source | Laser Diode (30,000 hours Mean Time Between Failures) |
| Counting efficiency | 50% @ 0.3μm and 100% for particles >0.45μm (ISO21501) |
| Maximum Rated Particle Concentration | 35000 particles/L |
| Operating Time | More than 5.5 hours |
| Environmental Temperature | Temperature :10 -35℃; Humidity:20%-75%RH; Atmosphere Pressure:86Kpa-106Kpa |
Features of air particle counter
1. Sample volume 28.3 LPM (1.0CFM).
2. Simultaneously display of up to six particle sizes
3. 20000-record data storage memory
4. Meet the requirements of ISO14644-1:2015
5.Built-in Thermal Printer
6.Low power display
